Intelligent Servo Terminal Crimping Machine

HS-SG20T Intelligent Servo Terminal Crimping Machine

Service hotline

+8618938694287

Add to the wish list

Product consultation

Product News Crimping Machine New Energy Large Cable Intelligent Servo Terminal Crimping Machine

Key Attributes

HS Code	8479819000	Power	2000W
Voltage	AC 220V 50Hz	Equipment Weight	400kg
Equipment Size	11006111400 mm	Production Efficiency	720pcs/h
Crimping Capacity	20T	Crimping Cable Range	6-120mm²
Crimping Stroke	60 mm	Pressure Monitoring	Baseplate Pressure Monitoring

Application Scenarios

Widely applied to high-voltage harness processing of AC/DC charging guns, new energy vehicles, energy storage, photovoltaics and rail transit. The full traceable crimping quality meets strict automotive manufacturing standards.

Product News Crimping Machine New Energy Large Cable Intelligent Servo Terminal Crimping Machine

Product introduction

Compatible with large wires, featuring full-process pressure monitoring, MES traceability and QR code management. It provides precise hexagonal/four-point/quadrilateral crimping and targets new energy high-voltage harness assembly lines.

Simple operation

High crimping accuracy

Low maintenance cost

Support for pressure detection

Related accessories

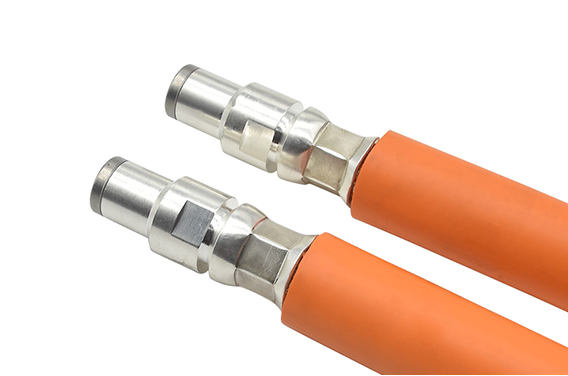

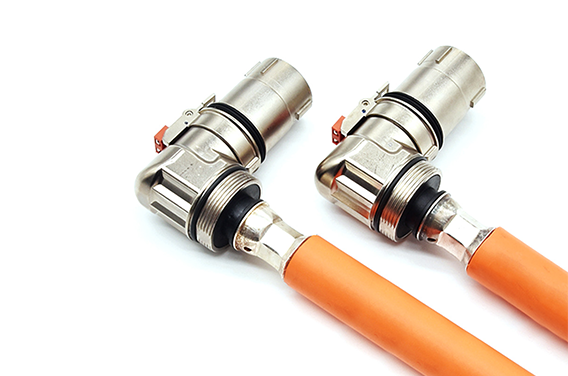

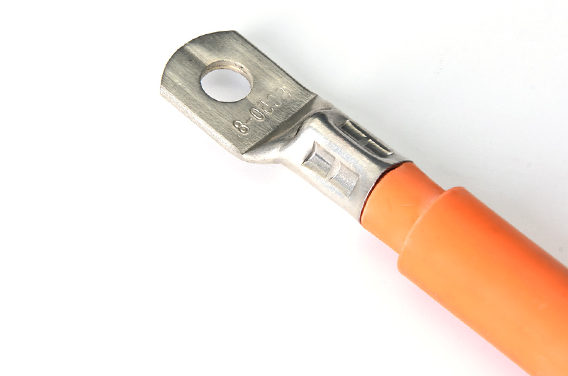

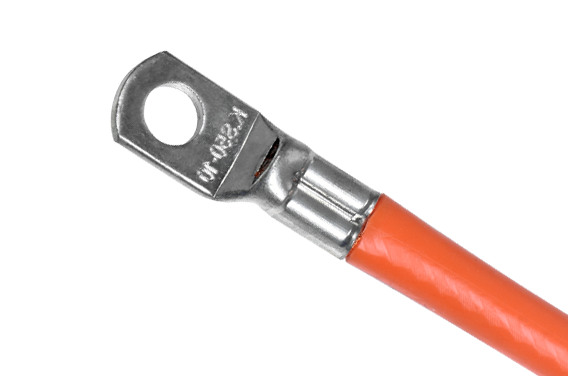

Sample Display

Comparison of similar product features

HS-SG20T Intelligent Servo Terminal Crimping Machine

HS Code	8479819000
Power	2000W
Equipment Weight	400kg
Equipment Size	11006111400 mm
Crimping Capacity	20T
Crimping Cable Range	6-120mm²
Crimping Stroke	60 mm
Pressure Monitoring	Baseplate Pressure Monitoring
Production Efficiency	720pcs/h
Voltage	AC 220V 50Hz
Displayed

HS-SG4T Intelligent Servo Terminal Crimping Machine

HS Code	8479819000
Power	2000W
Equipment Weight	300 kg
Equipment Size	8685361570 mm
Crimping Capacity	4T
Crimping Cable Range	0.5-16mm²
Crimping Stroke	30 mm
Pressure Monitoring	Oveshead Pressure Mionitaring
Production Efficiency	1200pcs/h
Voltage	AC 220V 50Hz
Displayed	Industrial computer

HS-SG10T Intelligent Servo Terminal Crimping Machine

HS Code	8479819000
Power	2000W
Equipment Weight	365 kg
Equipment Size	8686061650 mm
Crimping Capacity	10T
Crimping Cable Range	6-50mm²
Crimping Stroke	30/40 mm(Switchable）
Pressure Monitoring	Baseplate Pressure Monitoring
Production Efficiency	1000pcs/h
Voltage	AC 220V 50Hz
Displayed	Industrial computer

HS-SG40T Intelligent Servo Terminal Crimping Machine

HS Code	8479819000
Power	4500W
Equipment Weight	650kg
Equipment Size	12457701960 mm
Crimping Capacity	40T
Crimping Cable Range	16-300mm²
Crimping Stroke	75 mm
Pressure Monitoring	Baseplate Pressure Monitoring
Production Efficiency	400-500pcs/h
Voltage	AC 220V 50Hz
Displayed	Industrial computer

Product Name

HS Code

Power

Equipment Weight

Equipment Size

Crimping Capacity

Crimping Cable Range

Crimping Stroke

Pressure Monitoring

Production Efficiency

Voltage

Displayed

HS-SG20T Intelligent Servo Terminal Crimping Machine	HS-SG4T Intelligent Servo Terminal Crimping Machine	HS-SG10T Intelligent Servo Terminal Crimping Machine	HS-SG40T Intelligent Servo Terminal Crimping Machine
8479819000	8479819000	8479819000	8479819000
2000W	2000W	2000W	4500W
400kg	300 kg	365 kg	650kg
11006111400 mm	8685361570 mm	8686061650 mm	12457701960 mm
20T	4T	10T	40T
6-120mm²	0.5-16mm²	6-50mm²	16-300mm²
60 mm	30 mm	30/40 mm(Switchable）	75 mm
Baseplate Pressure Monitoring	Oveshead Pressure Mionitaring	Baseplate Pressure Monitoring	Baseplate Pressure Monitoring
720pcs/h	1200pcs/h	1000pcs/h	400-500pcs/h
AC 220V 50Hz	AC 220V 50Hz	AC 220V 50Hz	AC 220V 50Hz
	Industrial computer	Industrial computer	Industrial computer
