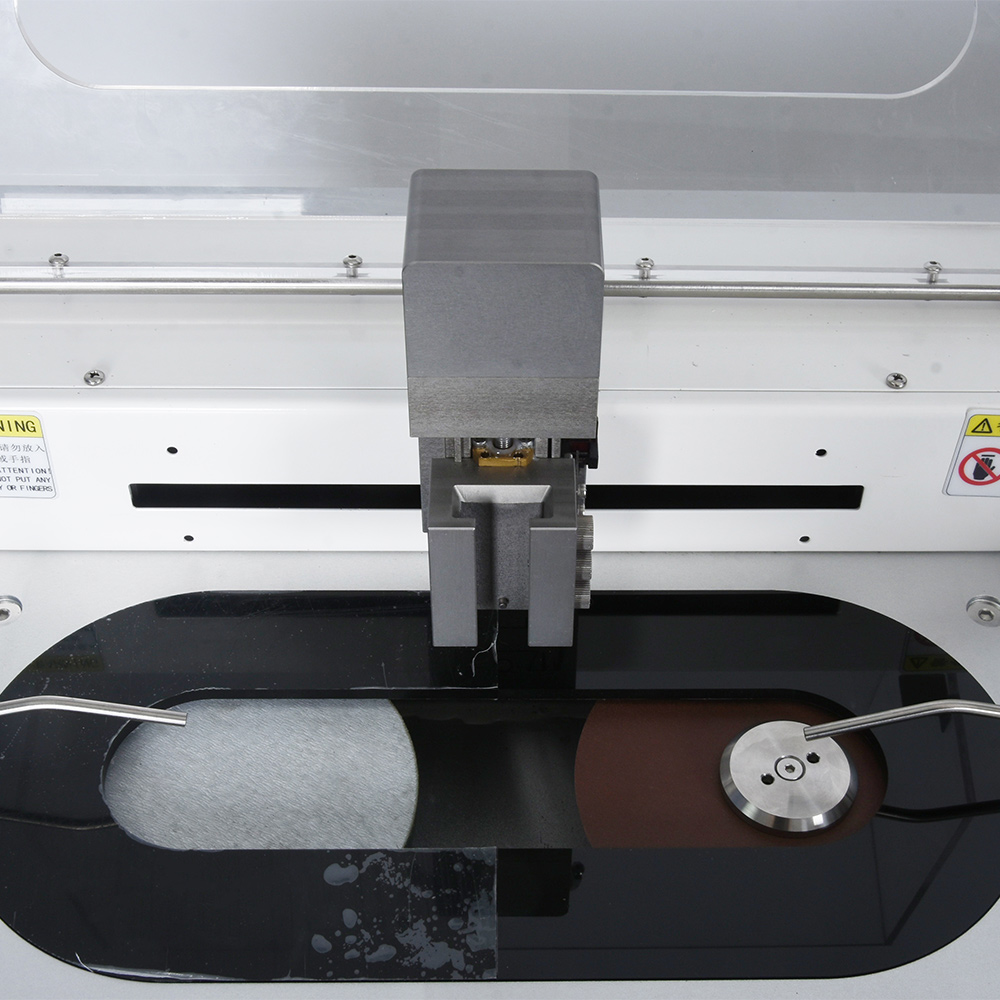

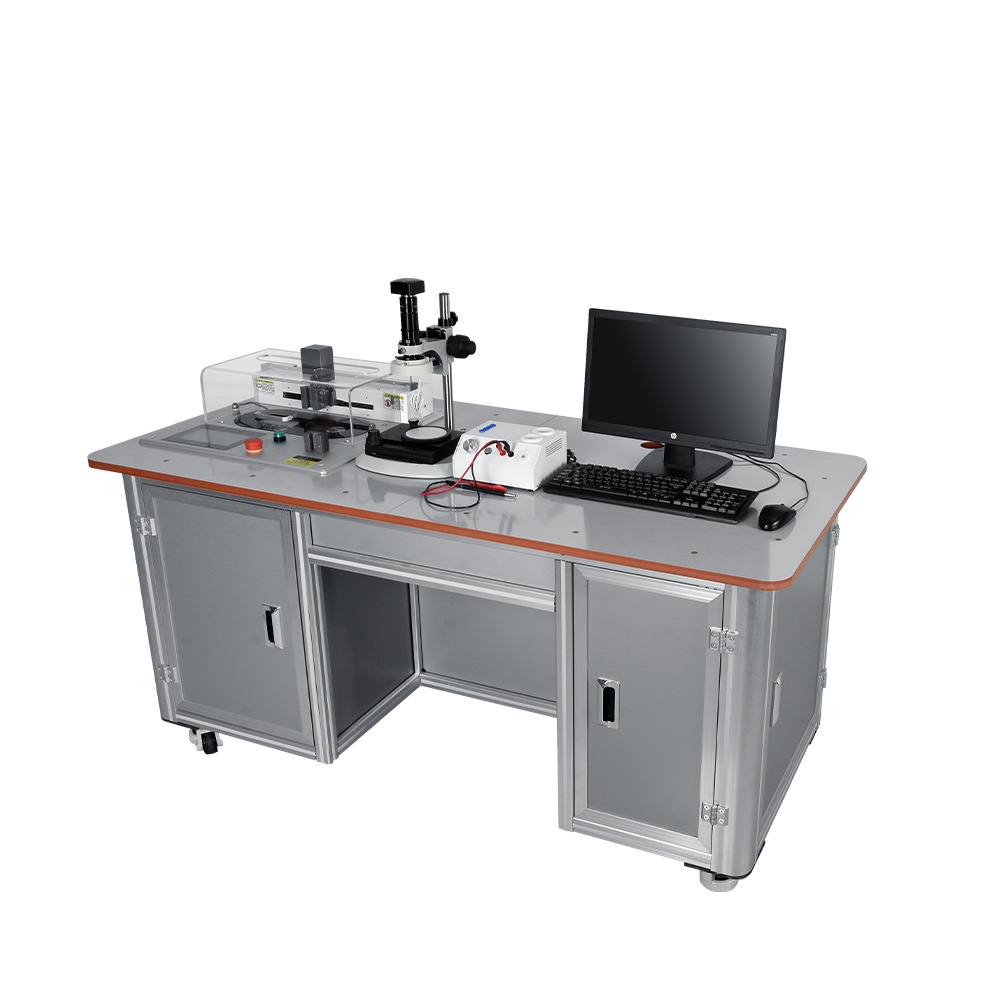

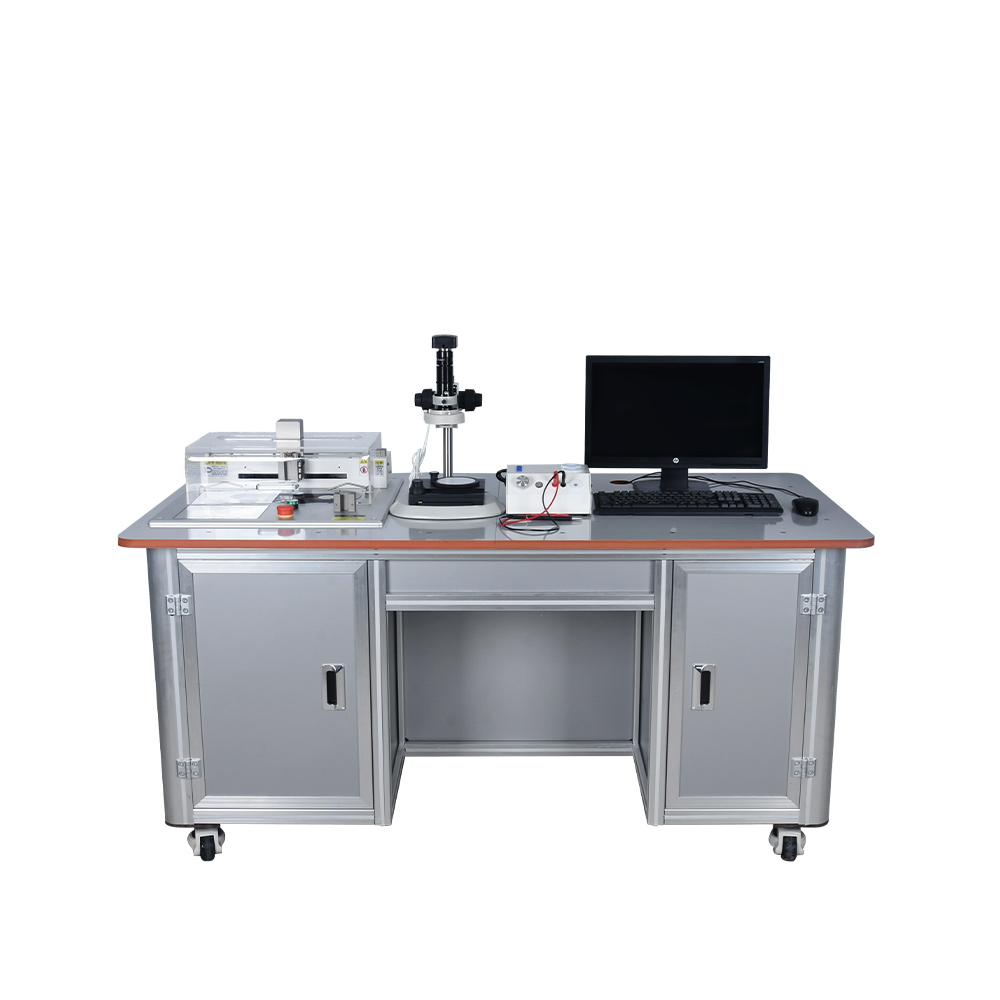

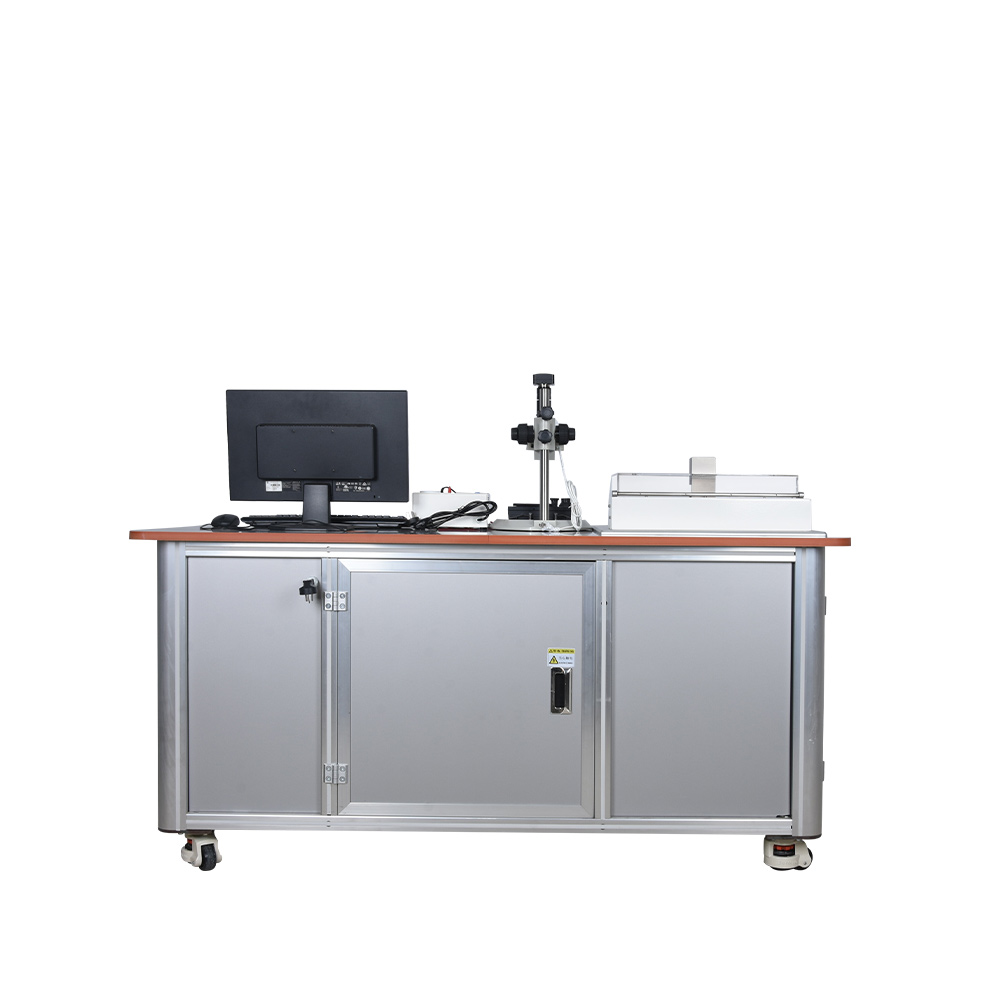

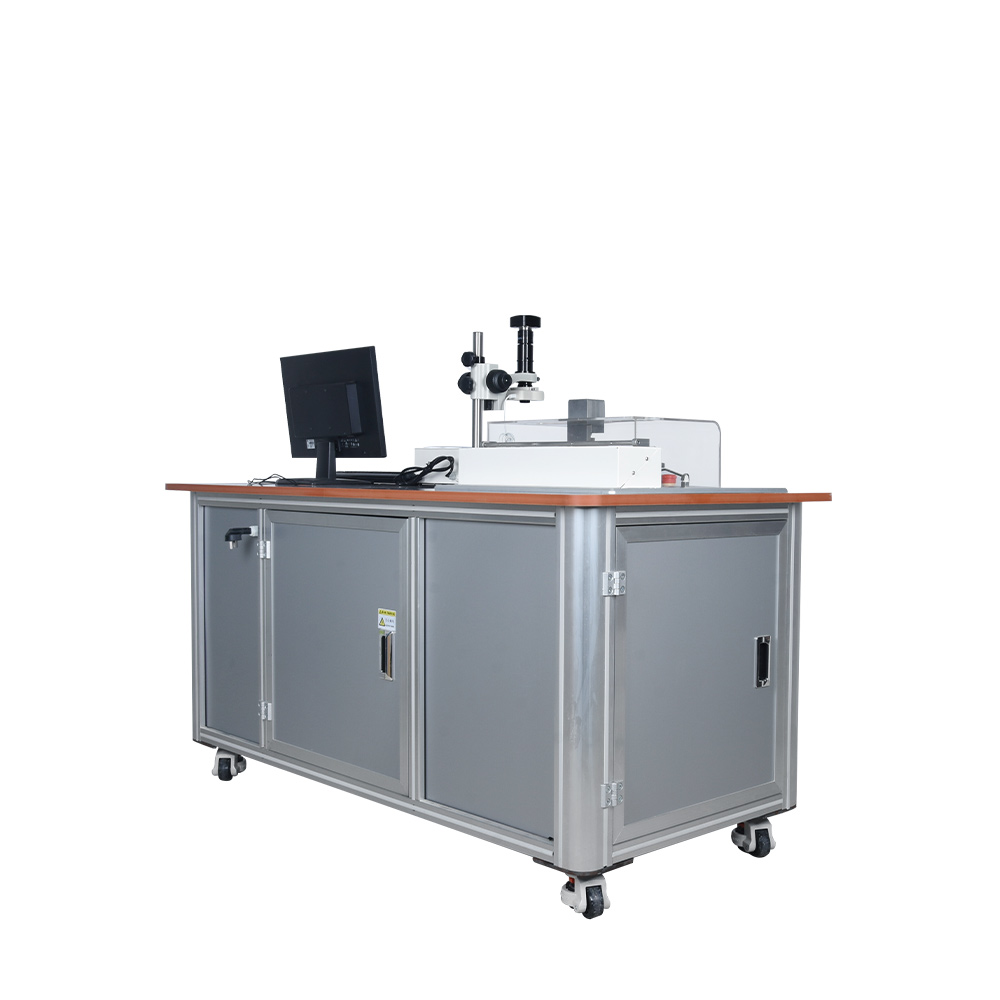

HS-Section6 Terminal Cross-section Analyzer

Service hotline

+8618938694287

Add to the wish list

Product consultation

Terminal Cross Section Analyzer Wire Harness Cross Section Tester

Key Attributes

HS Code	9024800000	Power	2500W
Voltage	AC 220V 50Hz	Equipment Weight	200kg
Equipment Size	1800750900mm	Scope of Application	0.01 - 200mm²
Measurement Accuracy	0.001mm	Movement Length	100mm
Microscope	0.7X~4.5X	Cutting Blade	Inner diameter: 32 mm, outer diameter: 150 mm, thickness: 0.5 mm
Cutting and Polishing Speed	0- 2800 rpm

Application Scenarios

Himinsen has accumulated extensive successful cases in high-end manufacturing sectors including new energy vehicles, charging guns, energy storage systems, AI servers, aerospace, medical devices, industrial electronics and household appliances. Leveraging its continuously innovative technological capabilities and efficient, reliable solution implementation, the company empowers global customers to achieve industrial upgrading and creates long-term core value.

Terminal Cross Section Analyzer Wire Harness Cross Section Tester

Product introduction

Easy operation, high-quality image acquisition system, accurate measurement analysis for the production escort

Easy operation

High-quality image acquisition system

Accurate measurement analysis

Escort production

Comparison of similar product features

HS-Section6 Terminal Cross-section Analyzer

Power	2500W
Voltage	AC 220V 50Hz
Equipment Weight	200kg
Equipment Size	1800750900mm
Scope of Application	0.01 - 200mm²
Movement Length	100mm
Microscope	0.7X~4.5X
Measurement Accuracy	0.001mm
Cutting and Polishing Speed	0- 2800 rpm
Cutting Blade	Inner diameter: 32 mm, outer diameter: 150 mm, thickness: 0.5 mm

HS-Section Terminal Cross-section Analyzer

Power	360W
Voltage	AC 220V 50Hz
Equipment Weight	24kg
Equipment Size	520340330mm
Scope of Application	0.01 - 120mm²
Movement Length	250mm
Microscope	0.7X~4.5X
Measurement Accuracy	0.001mm
Cutting and Polishing Speed	0- 4000rpm
Cutting Blade	Outer diameter: 150mm, thickness: 0.5mm

Product Name

Power

Voltage

Equipment Weight

Equipment Size

Scope of Application

Movement Length

Microscope

Measurement Accuracy

Cutting and Polishing Speed

Cutting Blade

HS-Section6 Terminal Cross-section Analyzer	HS-Section Terminal Cross-section Analyzer
2500W	360W
AC 220V 50Hz	AC 220V 50Hz
200kg	24kg
1800750900mm	520340330mm
0.01 - 200mm²	0.01 - 120mm²
100mm	250mm
0.7X~4.5X	0.7X~4.5X
0.001mm	0.001mm
0- 2800 rpm	0- 4000rpm
Inner diameter: 32 mm, outer diameter: 150 mm, thickness: 0.5 mm	Outer diameter: 150mm, thickness: 0.5mm
