Crimping Machine New Energy Large Cable AC Gun Double-Head Processing Equipment Hot Sale Factory Direct Sales

Key Attributes

HS Code	8479819000	Power	45000W
Voltage	Three-phase five-wire 380V 50Hz	Equipment Size	730018502200mm
Production Efficiency	100-105pcs/h	Crimping Capacity	8T
Crimping Cable Range	2.5-6mm²	Cable Length	1360mm-10000mm
Heat Shrink Tube Size	Suitable φ6-10mm	Heat Shrink Tube Length Range	8-20mm adjustable;Cutting tolerance:±0.5mm
Heat Shrink Temperature	300±5℃ adjustable	Peeling Length	0-20mm adjustable

Application Scenarios

Himinsen has accumulated extensive successful cases in high-end manufacturing sectors including new energy vehicles, charging guns, energy storage systems, AI servers, aerospace, medical devices, industrial electronics and household appliances. Leveraging its continuously innovative technological capabilities and efficient, reliable solution implementation, the company empowers global customers to achieve industrial upgrading and creates long-term core value.

Crimping Machine New Energy Large Cable AC Gun Double-Head Processing Equipment Hot Sale Factory Direct Sales

Product introduction

This equipment is specifically designed for AC charging gun harness processing. It adopts an 11-axis servo linkage control system. Operators only need to feed the wire from the right side of the machine, and the equipment automatically completes processing steps such as core wire cutting, stripping, marking/sleeving with marker tubes, and terminal crimping. This significantly reduces labor intensity and improves production efficiency.

Integrated harness machining

Precise motion control

Multi-process one-stop processing

Consistent crimping quality

Servo linkage control

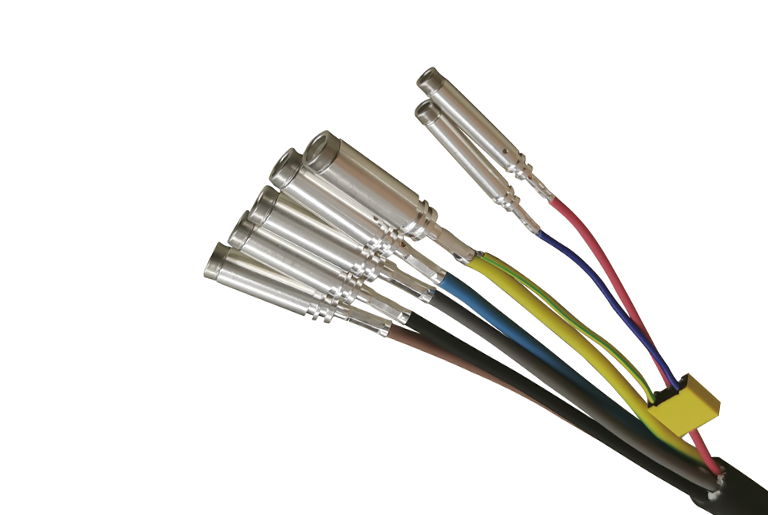

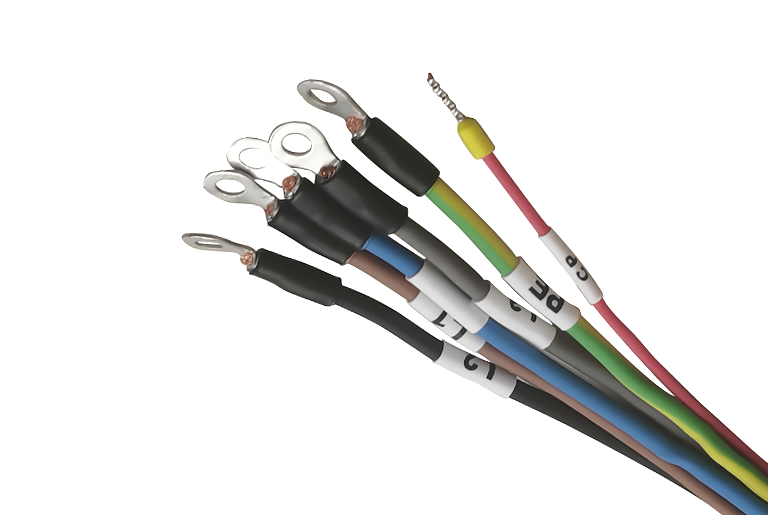

Sample Display

Comparison of similar product features

HS-J21 AC Gun Double-Head Processing Equipment

Power	45000W
Voltage	Three-phase five-wire 380V 50Hz
Equipment Size	730018502200mm
Crimping Capacity	8T
Production Efficiency	100-105pcs/h
Crimping Cable Range	2.5-6mm²

HS-J10 AC Single-end Processing Equipment for AC Charging Guns

Power	7000W
Voltage	AC 220V 50Hz
Equipment Size	1350mm1350mm1850mm
Crimping Capacity	4T
Production Efficiency	20s/pc
Crimping Cable Range	2.5mm\4mm\6mm

Product Name

Power

Voltage

Equipment Size

Crimping Capacity

Production Efficiency

Crimping Cable Range

HS-J21 AC Gun Double-Head Processing Equipment	HS-J10 AC Single-end Processing Equipment for AC Charging Guns
45000W	7000W
Three-phase five-wire 380V 50Hz	AC 220V 50Hz
730018502200mm	1350mm1350mm1850mm
8T	4T
100-105pcs/h	20s/pc
2.5-6mm²	2.5mm\4mm\6mm
