Fully Automatic Wire Cutting and Stripping Machine

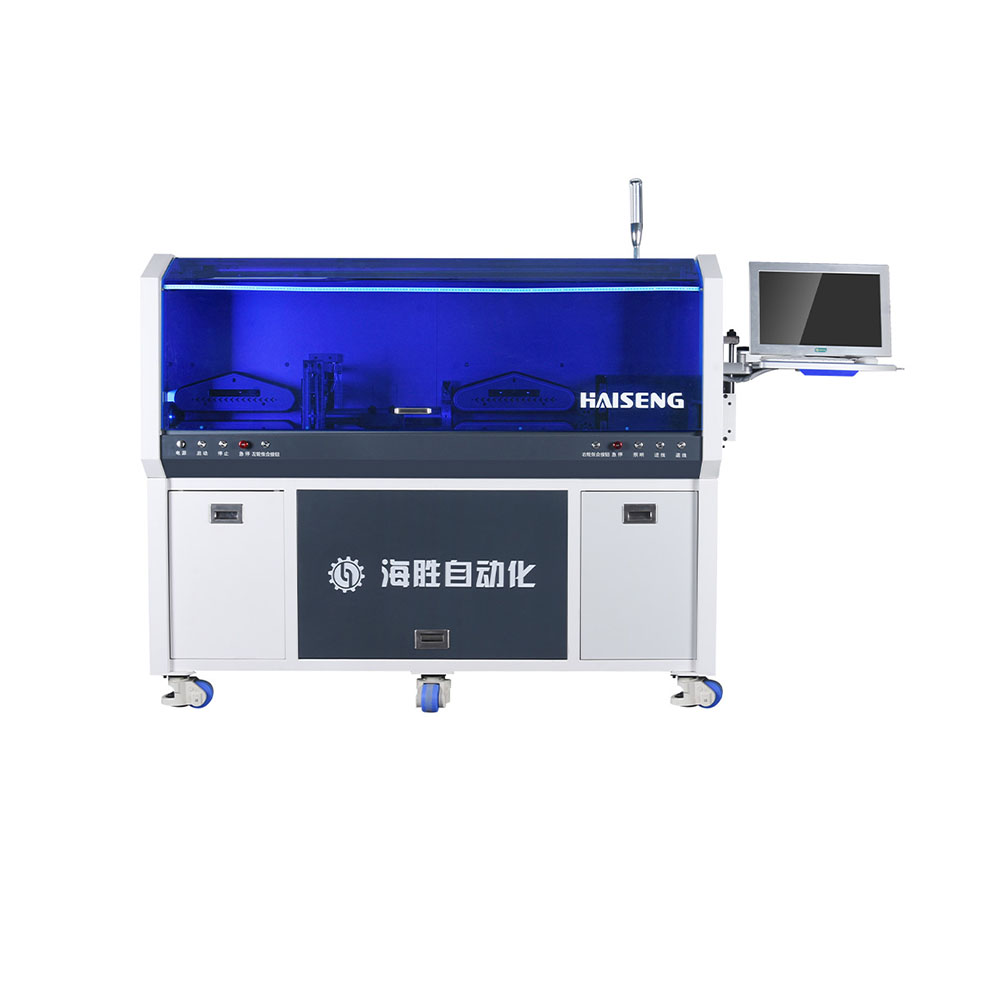

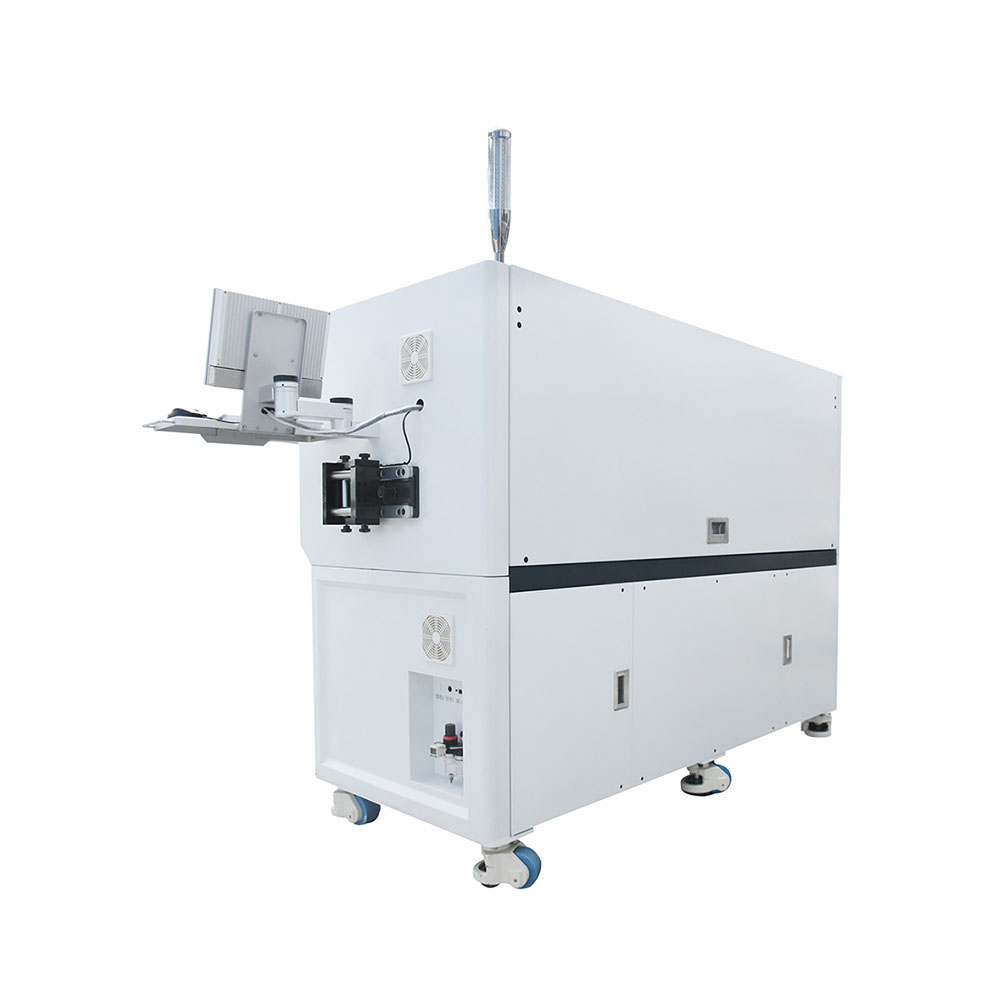

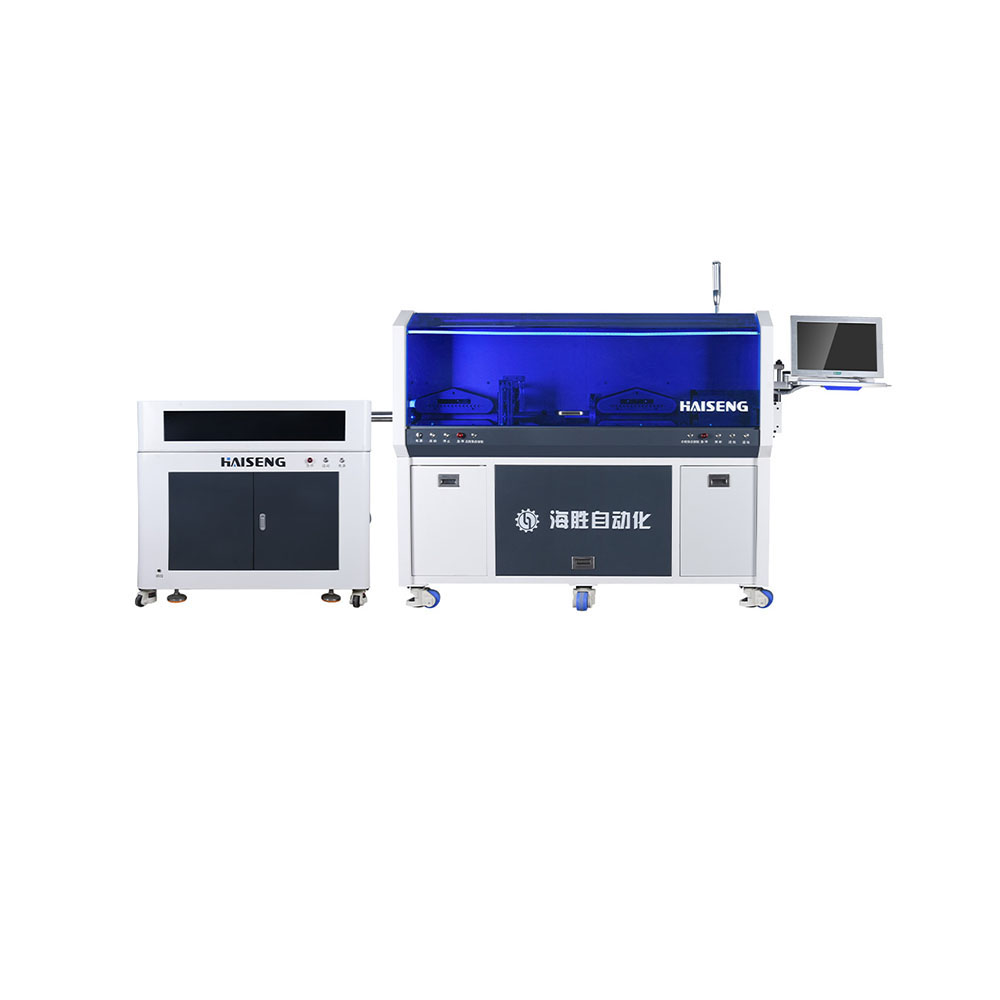

HS-880XZ-300 Fully Automatic Wire Cutting and Stripping Machine(Rotary Blade)

Service hotline

+8618938694287

Add to the wish list

Product consultation

Fully Automatic Wire Cutting and Stripping Machine Automatic Rotary Knife Wire Cut and Strip Machine Cable rotary stripping equipment

Key Attributes

HS Code	8468800000	Power	3000W
Voltage	AC 220V 50Hz	Equipment Weight	1237kg
Equipment Size	2450×880×1610 mm	Displayed	19-inch industrial computer
Production Efficiency	50 s/pc	Cutting Length	10-99999mm
Cutting & Stripping Processing Range	30-300mm²	Stripping Length	Front 0-500 mm ;Rear0-400 mm(Customizable extended length)

Application Scenarios

Himinsen has accumulated extensive successful cases in high-end manufacturing sectors including new energy vehicles, charging guns, energy storage systems, AI servers, aerospace, medical devices, industrial electronics and household appliances. Leveraging its continuously innovative technological capabilities and efficient, reliable solution implementation, the company empowers global customers to achieve industrial upgrading and creates long-term core value.

Fully Automatic Wire Cutting and Stripping Machine Automatic Rotary Knife Wire Cut and Strip Machine Cable rotary stripping equipment

Product introduction

This equipment features servo drive control and belt-type feeding,with an integrated industrial computer for display and operation,supporting MES connectivity.It adopts a movable too holder design and supports 10-layer rotary cutting for precision jacket stripping.It is specifically configured for processing new energy wiring and charging gun cables.

Belt-type feeding

Servo drive control

Belt-type feeding

High precision stripping

MES connectivity

High precision stripping

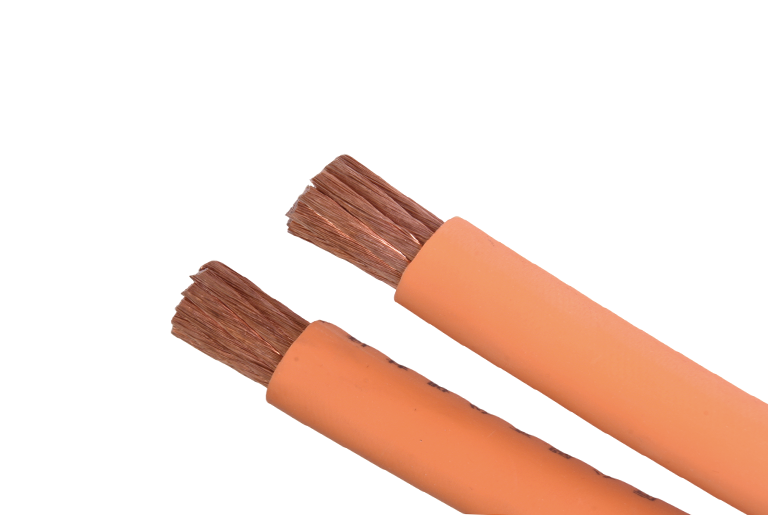

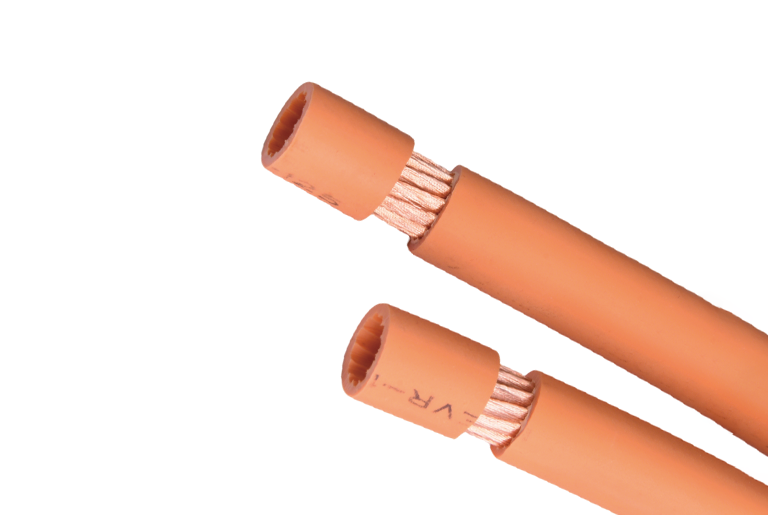

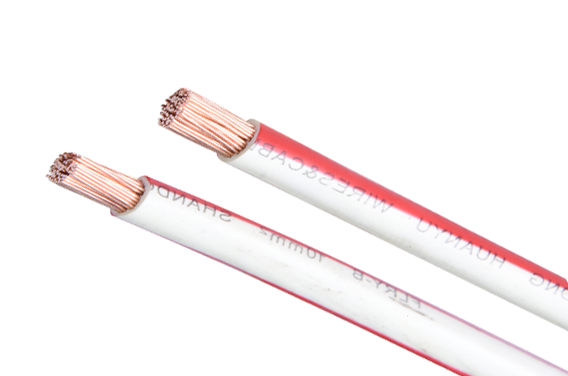

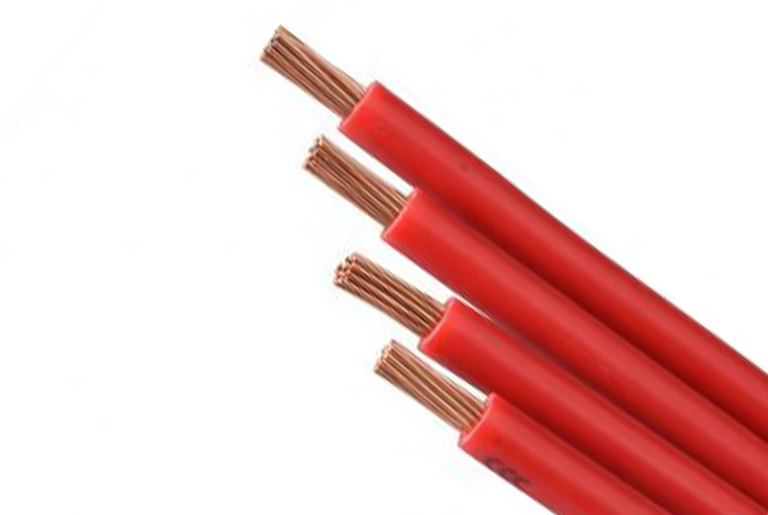

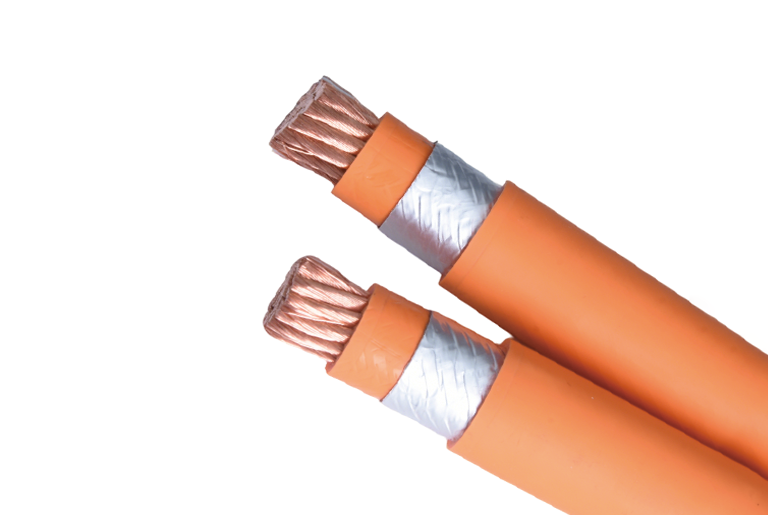

Sample Display

Comparison of similar product features

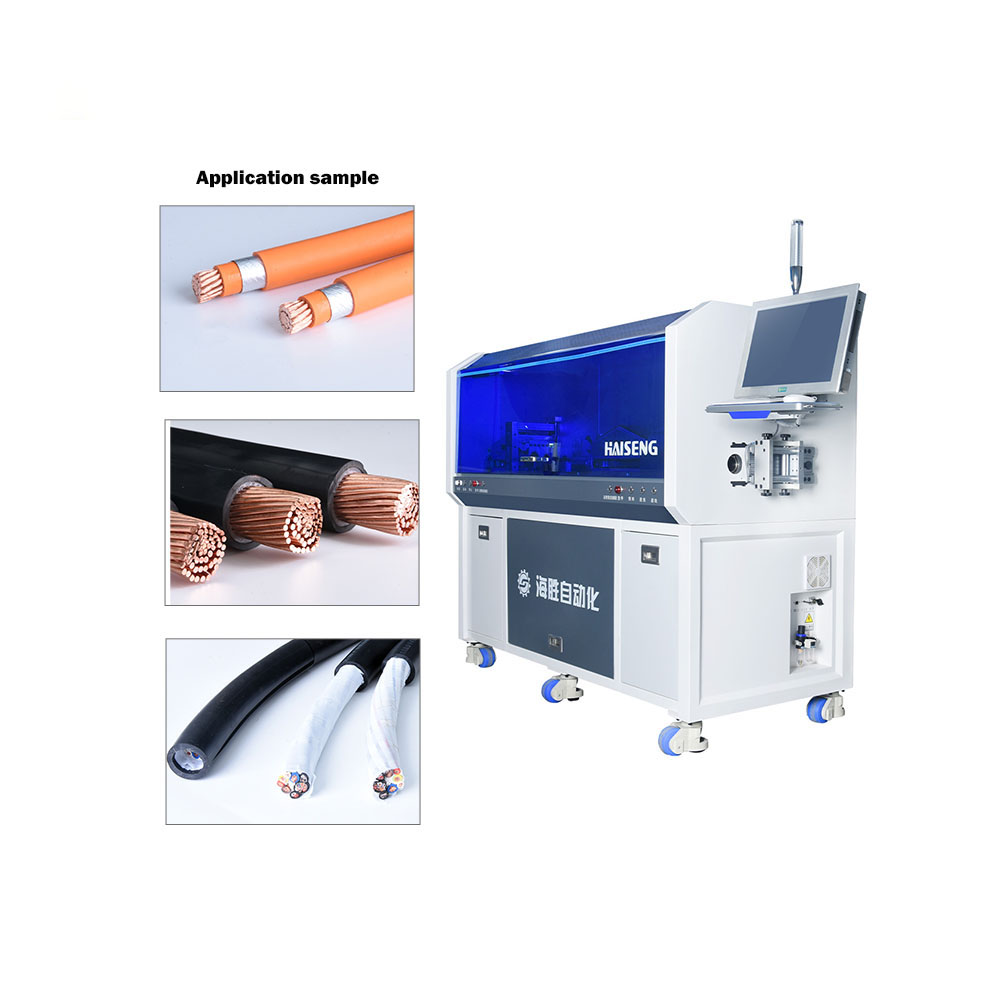

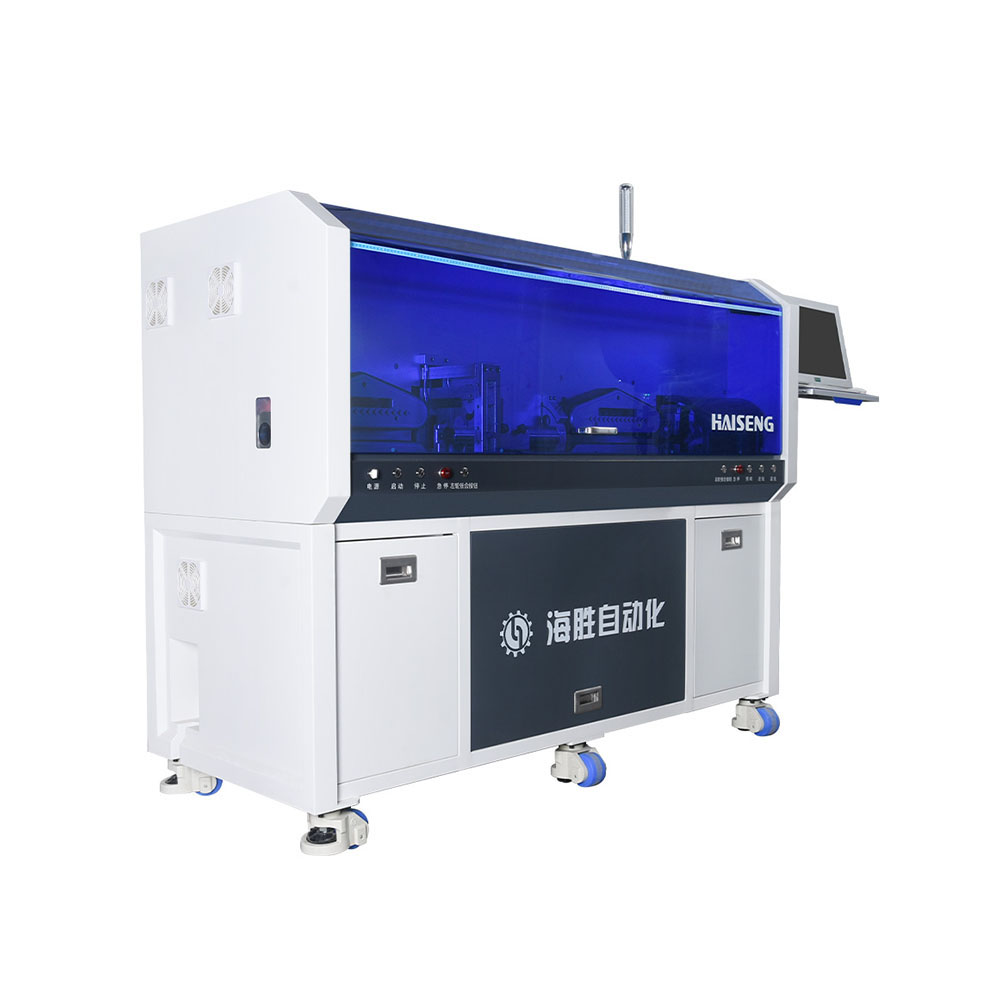

HS-880XZ-300 Fully Automatic Wire Cutting and Stripping Machine(Rotary Blade)

Power	3000W
Voltage	AC 220V 50Hz
Equipment Weight	1237kg
Equipment Size	2450×880×1610 mm
Production Efficiency	50 s/pc
Cutting & Stripping Processing Range	30-300mm²
Cutting Length	10-99999mm
Stripping Length	Front 0-500 mm ;Rear0-400 mm(Customizable extended length)

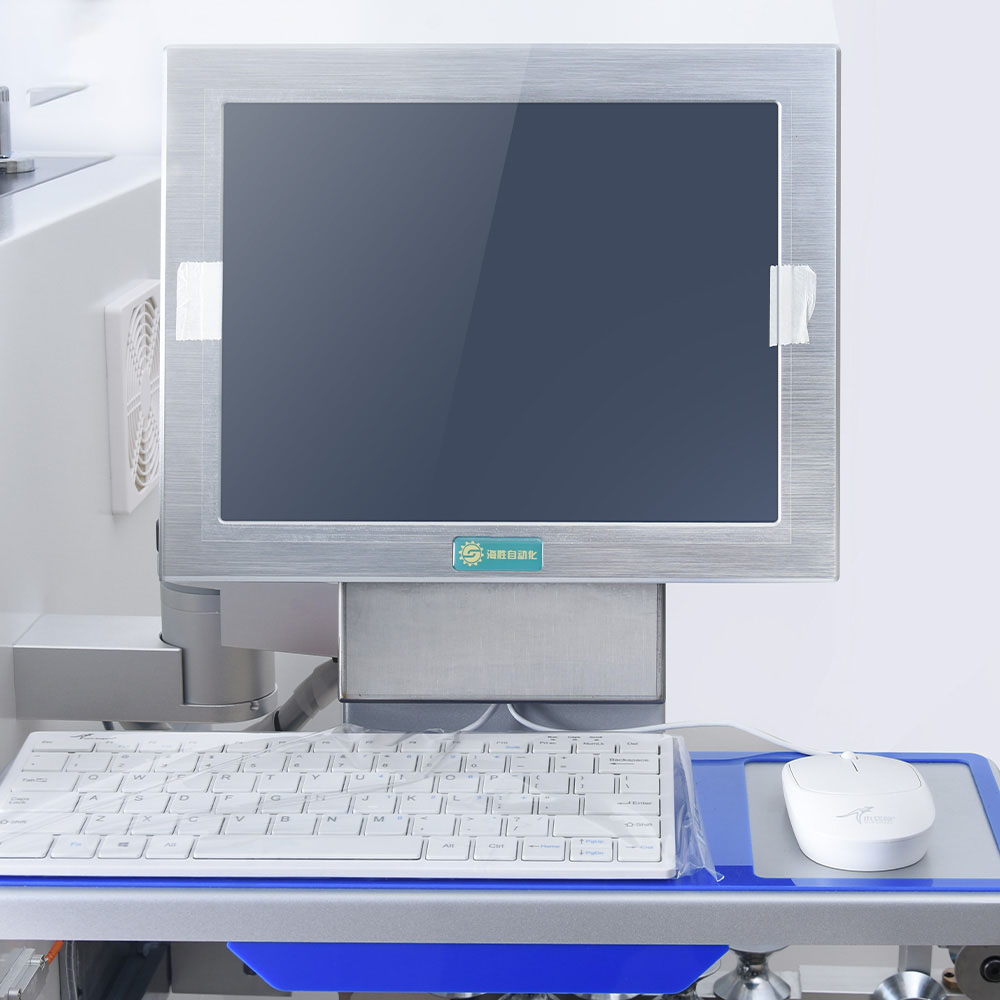

Displayed	19-inch industrial computer

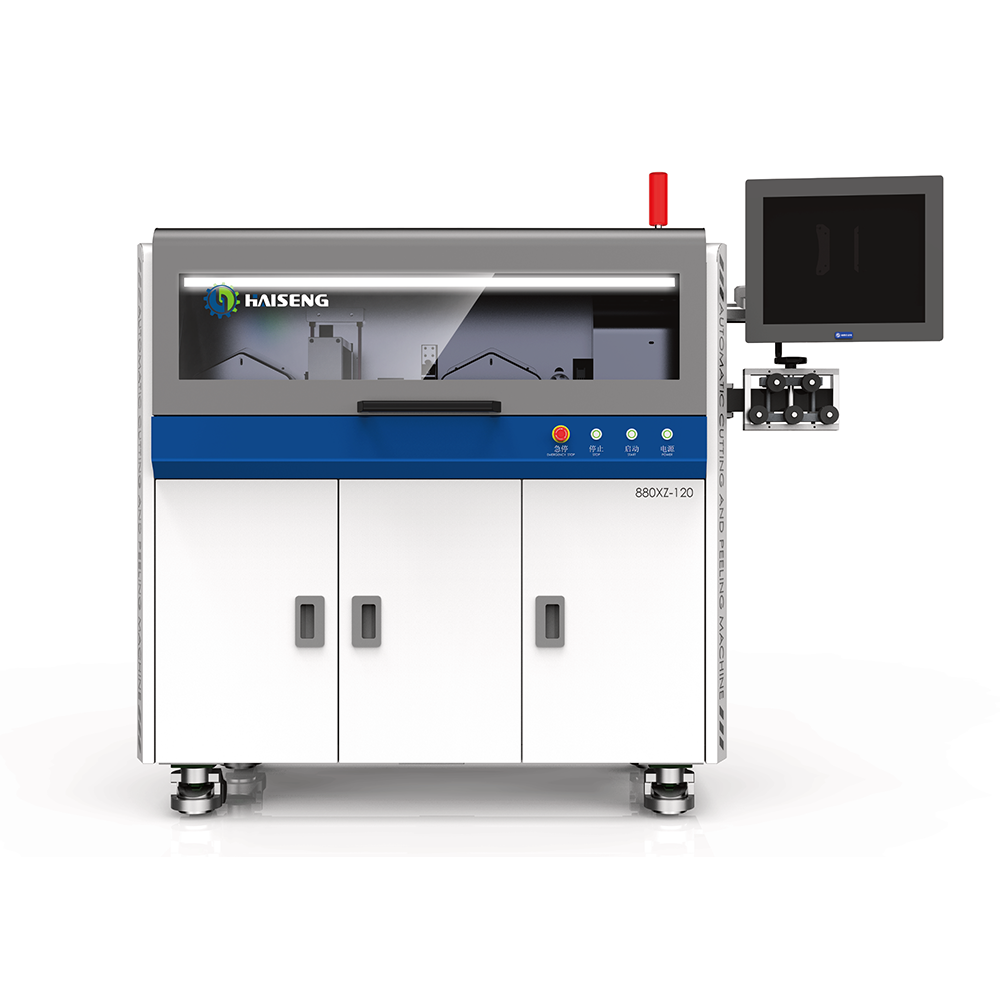

HS-880XZ-120 Fully Automatic Wire Cutting and Stripping Machine(Rotary Blade)

Power	2000W
Voltage	AC 220V 50Hz
Equipment Weight	500kg
Equipment Size	20208001420 mm
Production Efficiency	25 s/pc
Cutting & Stripping Processing Range	6-120mm²
Cutting Length	10-99999mm
Stripping Length	Front 0-300mm;Rear 0-235 mm
Displayed	12-inch industrial computer

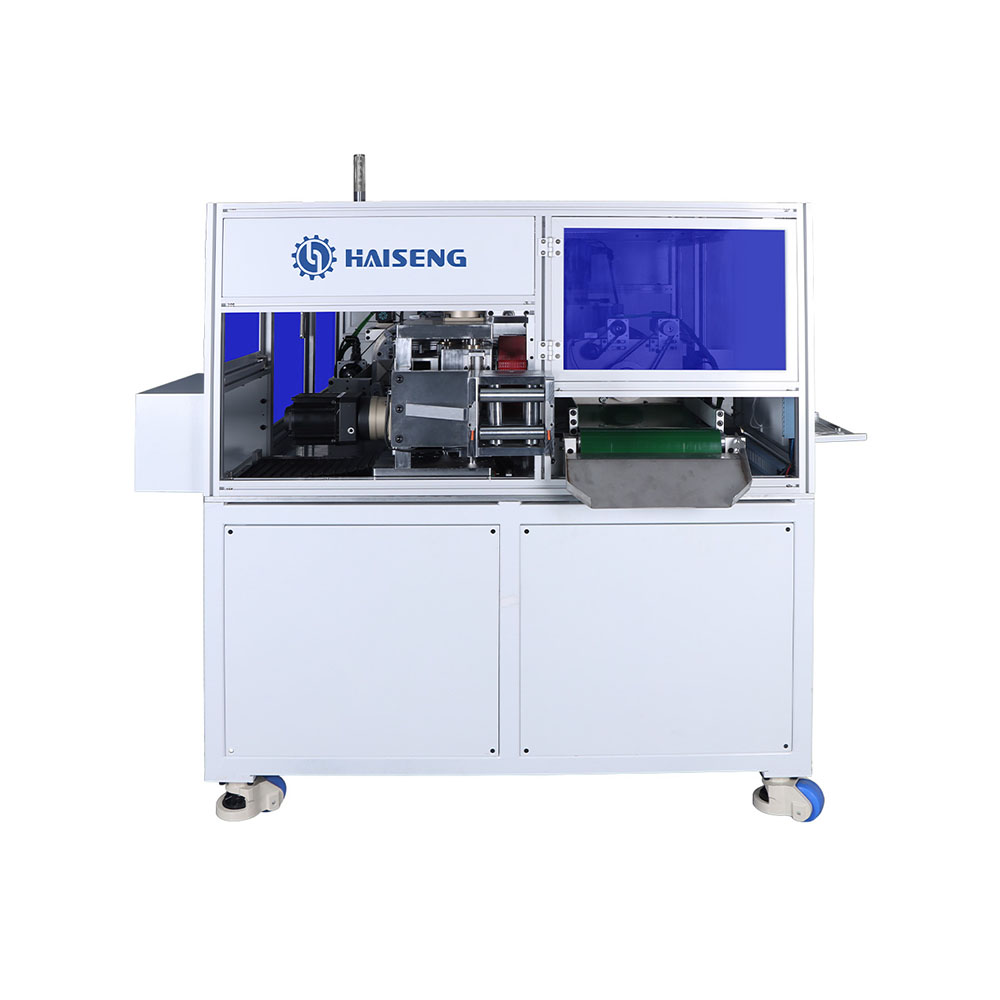

HS-880XZ-400 Fully Automatic Wire Cutting and Stripping Machine(Rotary Blade)

Power	23000W
Voltage	AC 220V 50Hz
Equipment Weight	1600kg
Equipment Size	2853×1850×1624 mm
Production Efficiency	30 s/pc
Cutting & Stripping Processing Range	30-400mm²
Cutting Length	1-99999mm
Stripping Length	Front 1-1000mm ;Rear1-1000 mm
Displayed	19-inch industrial computer

Product Name

Power

Voltage

Equipment Weight

Equipment Size

Production Efficiency

Cutting & Stripping Processing Range

Cutting Length

Stripping Length

Displayed

HS-880XZ-300 Fully Automatic Wire Cutting and Stripping Machine(Rotary Blade)	HS-880XZ-120 Fully Automatic Wire Cutting and Stripping Machine(Rotary Blade)	HS-880XZ-400 Fully Automatic Wire Cutting and Stripping Machine(Rotary Blade)
3000W	2000W	23000W
AC 220V 50Hz	AC 220V 50Hz	AC 220V 50Hz
1237kg	500kg	1600kg
2450×880×1610 mm	20208001420 mm	2853×1850×1624 mm
50 s/pc	25 s/pc	30 s/pc
30-300mm²	6-120mm²	30-400mm²
10-99999mm	10-99999mm	1-99999mm
Front 0-500 mm ;Rear0-400 mm(Customizable extended length)	Front 0-300mm;Rear 0-235 mm	Front 1-1000mm ;Rear1-1000 mm
19-inch industrial computer	12-inch industrial computer	19-inch industrial computer
