Ultrasonic Terminal Welding Machine

HMS-D01T Ultrasonic Terminal Welding Machine

Service hotline

+8618938694287

Add to the wish list

Product consultation

Ultrasonic Welding Machine Ultrasonic Terminal Welding Machine Product News Source Factory Hot Sale

Key Attributes

HS Code	8515809090	Power	11000W
Voltage	AC 380V 50Hz	Equipment Weight	569kg
Equipment Size	15009201950mm	Production Efficiency	120-150pcs/h
Wire Harness Welding Range	Copper wire 16-120mm²;Aluminum wire 16-150mm²	Operating Frequency	20KHz
Air Pressure	>0.5 MPa

Application Scenarios

New energy vehicle complete wiring harnesses, power battery PACK harnesses, energy storage inverter connecting cables, photovoltaic module bus cables, EV charging gun wires, construction machinery wiring, rail transit high-voltage harnesses, medical precision equipment conductors and other wire harness production lines.

Ultrasonic Welding Machine Ultrasonic Terminal Welding Machine Product News Source Factory Hot Sale

Product introduction

Advanced ultrasonic welding technology

Easy operation

Compatible with MES systems

Password protection and parameter storage

Supports storage of 100,000 sets of welding data

Prevents misaligned welds, missing welds and incomplete fusion

Related accessories

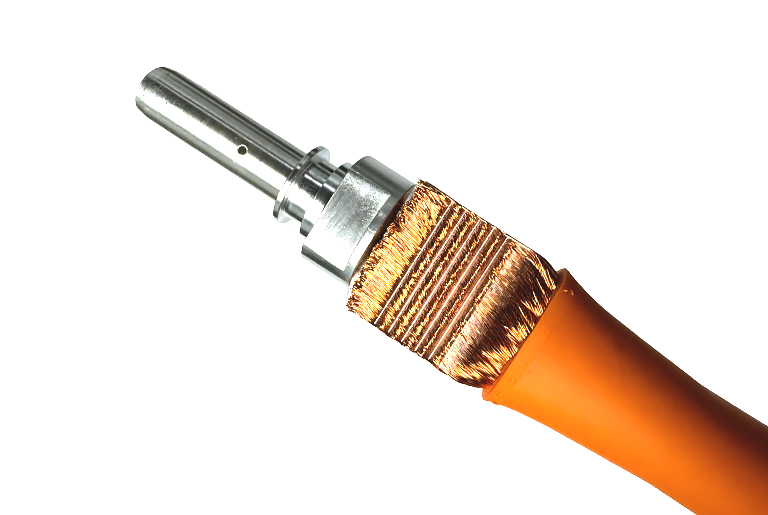

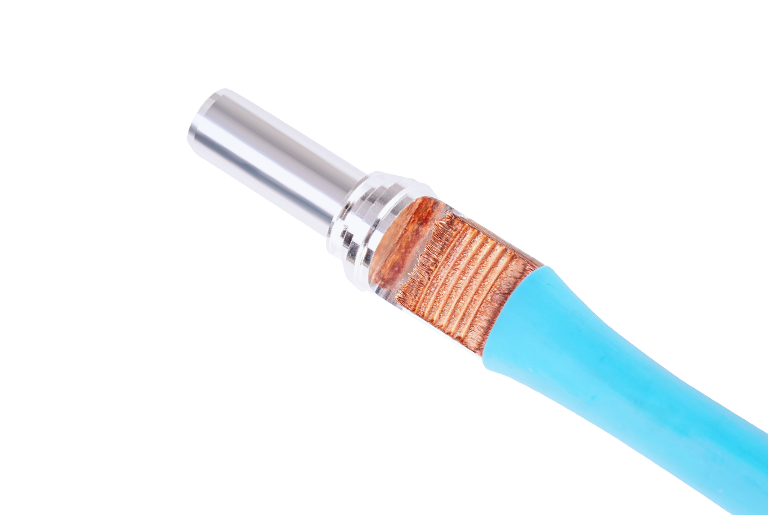

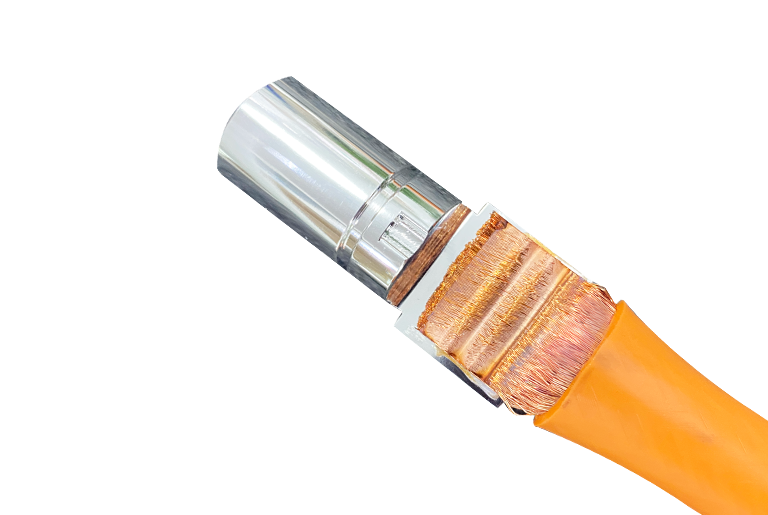

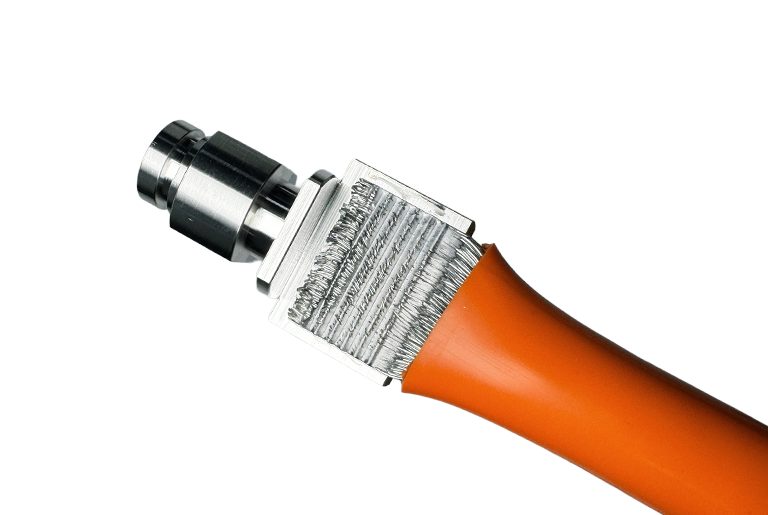

Sample Display

Comparison of similar product features

HMS-D01T Ultrasonic Terminal Welding Machine

Wire Harness Welding Range	Copper wire 16-120mm²;Aluminum wire 16-150mm²
Operating Frequency	20KHz
Voltage	AC 380V 50Hz
Equipment Weight	569kg
Equipment Size	15009201950mm
Power	11000W
Production Efficiency	120-150pcs/h
Air Pressure	>0.5 MPa

HMS-D00 Ultrasonic Terminal Welding Machine

Wire Harness Welding Range	Copper wire 2.5-25mm²;Aluminum wire 2.5-35mm²
Operating Frequency	20KHz
Voltage	AC 220V 50Hz
Equipment Weight	220kg
Equipment Size	615760900 mm
Power	4000W
Production Efficiency	120-150pcs/h
Air Pressure	>0.5MPa

HMS-D01 Ultrasonic Terminal Welding Machine

Wire Harness Welding Range	Copper wire 6-70mm²;Aluminum wire 6-85mm²
Operating Frequency	20KHz
Voltage	AC 380V 50Hz
Equipment Weight	530kg
Equipment Size	15009201950mm
Power	6200W
Production Efficiency	120-150pcs/h
Air Pressure	>0.5 MPa

HMS-D01G Ultrasonic Terminal Welding Machine

Wire Harness Welding Range	Copper wire 6-95mm²;Aluminum wire 6-95mm²
Operating Frequency	20KHz
Voltage	AC 380V 50Hz
Equipment Weight	530kg
Equipment Size	15009201950mm
Power	9000W
Production Efficiency	120-150pcs/h
Air Pressure	>0.5 MPa

Product Name

Wire Harness Welding Range

Operating Frequency

Voltage

Equipment Weight

Equipment Size

Power

Production Efficiency

Air Pressure

HMS-D01T Ultrasonic Terminal Welding Machine	HMS-D00 Ultrasonic Terminal Welding Machine	HMS-D01 Ultrasonic Terminal Welding Machine	HMS-D01G Ultrasonic Terminal Welding Machine
Copper wire 16-120mm²;Aluminum wire 16-150mm²	Copper wire 2.5-25mm²;Aluminum wire 2.5-35mm²	Copper wire 6-70mm²;Aluminum wire 6-85mm²	Copper wire 6-95mm²;Aluminum wire 6-95mm²
20KHz	20KHz	20KHz	20KHz
AC 380V 50Hz	AC 220V 50Hz	AC 380V 50Hz	AC 380V 50Hz
569kg	220kg	530kg	530kg
15009201950mm	615760900 mm	15009201950mm	15009201950mm
11000W	4000W	6200W	9000W
120-150pcs/h	120-150pcs/h	120-150pcs/h	120-150pcs/h
>0.5 MPa	>0.5MPa	>0.5 MPa	>0.5 MPa
