Fully Automatic Wire Cutting and Stripping Machine

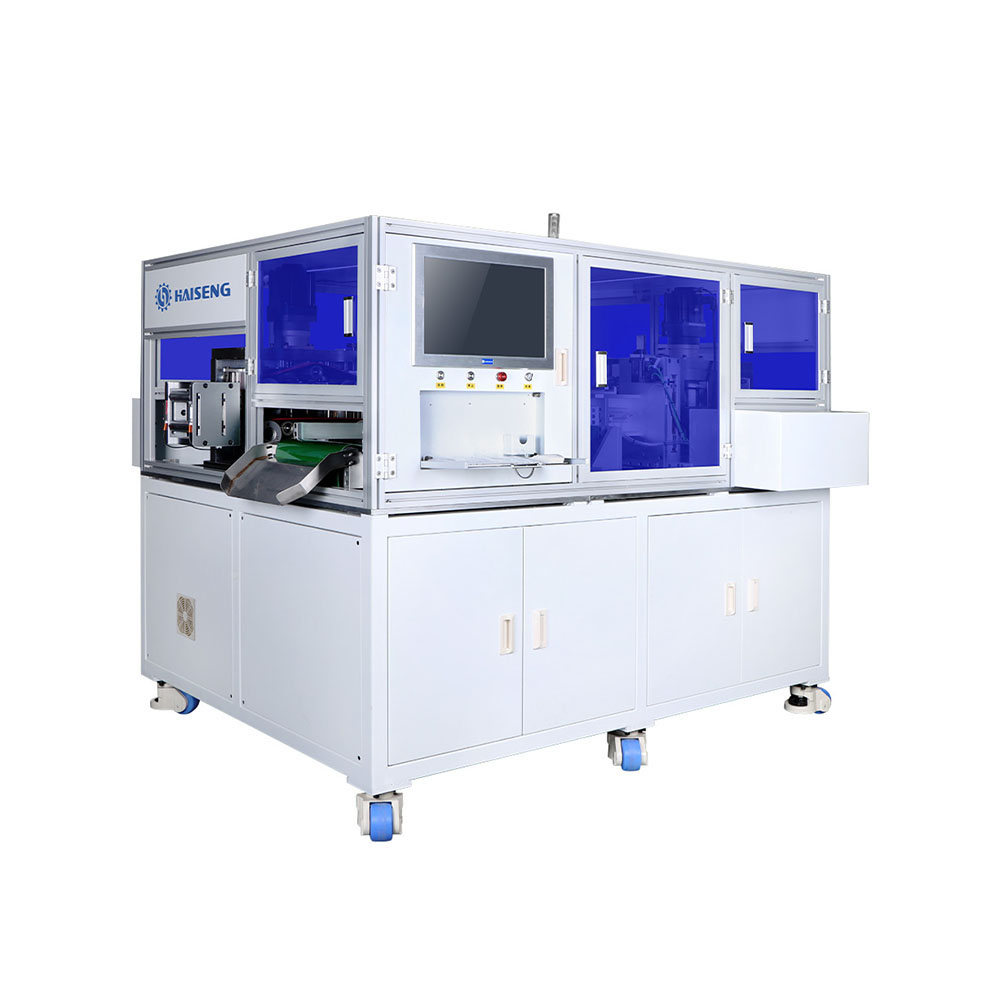

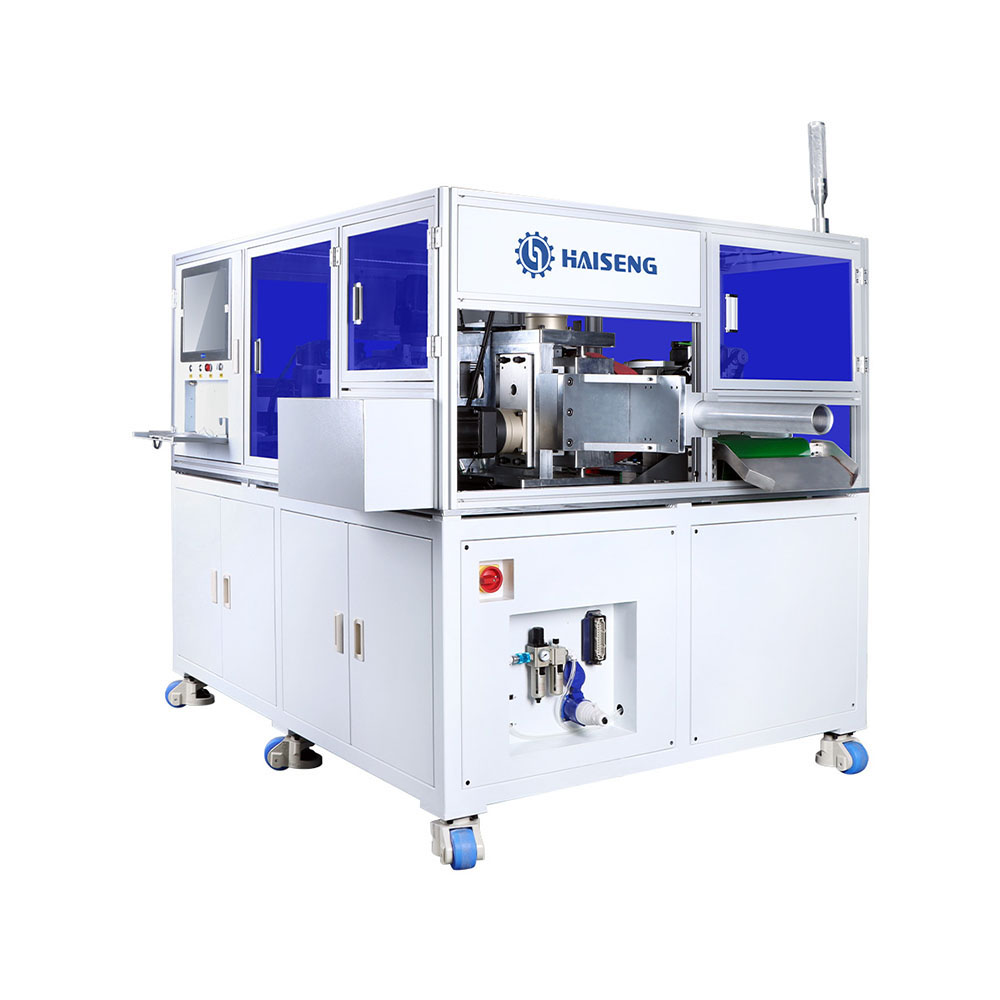

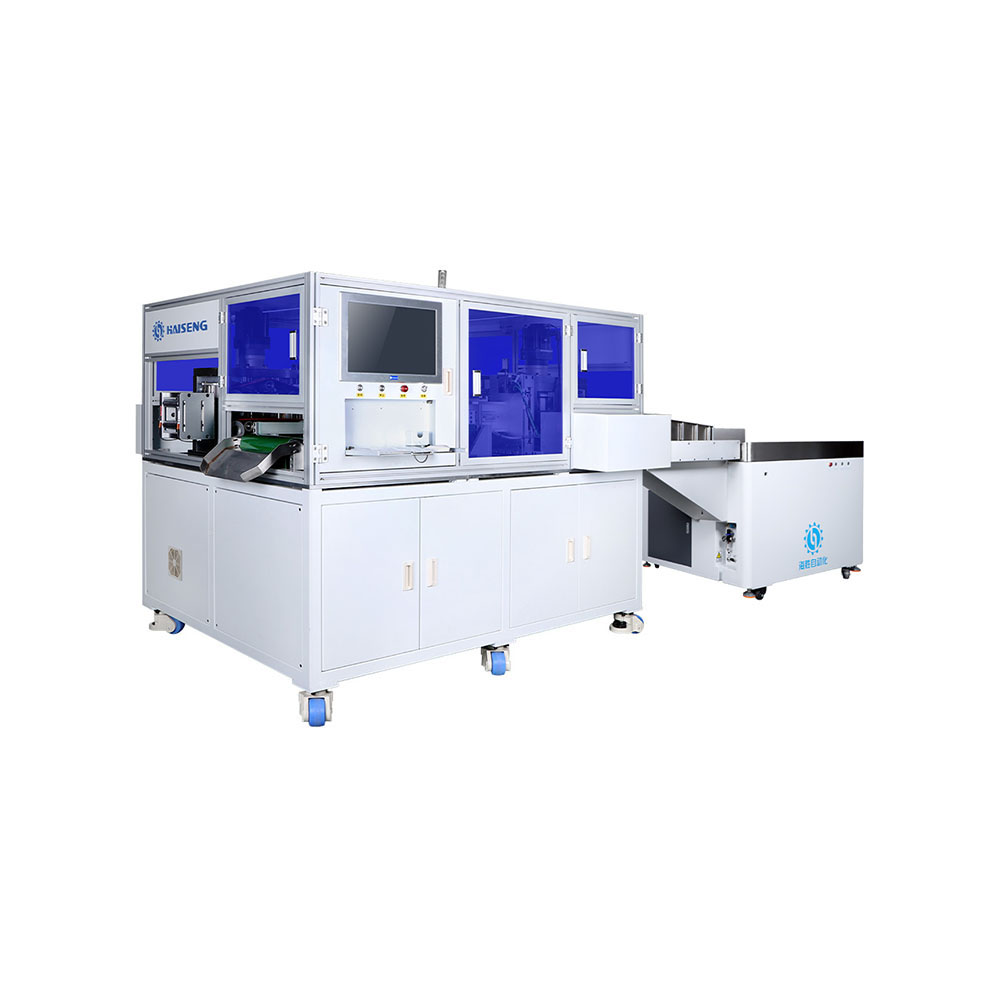

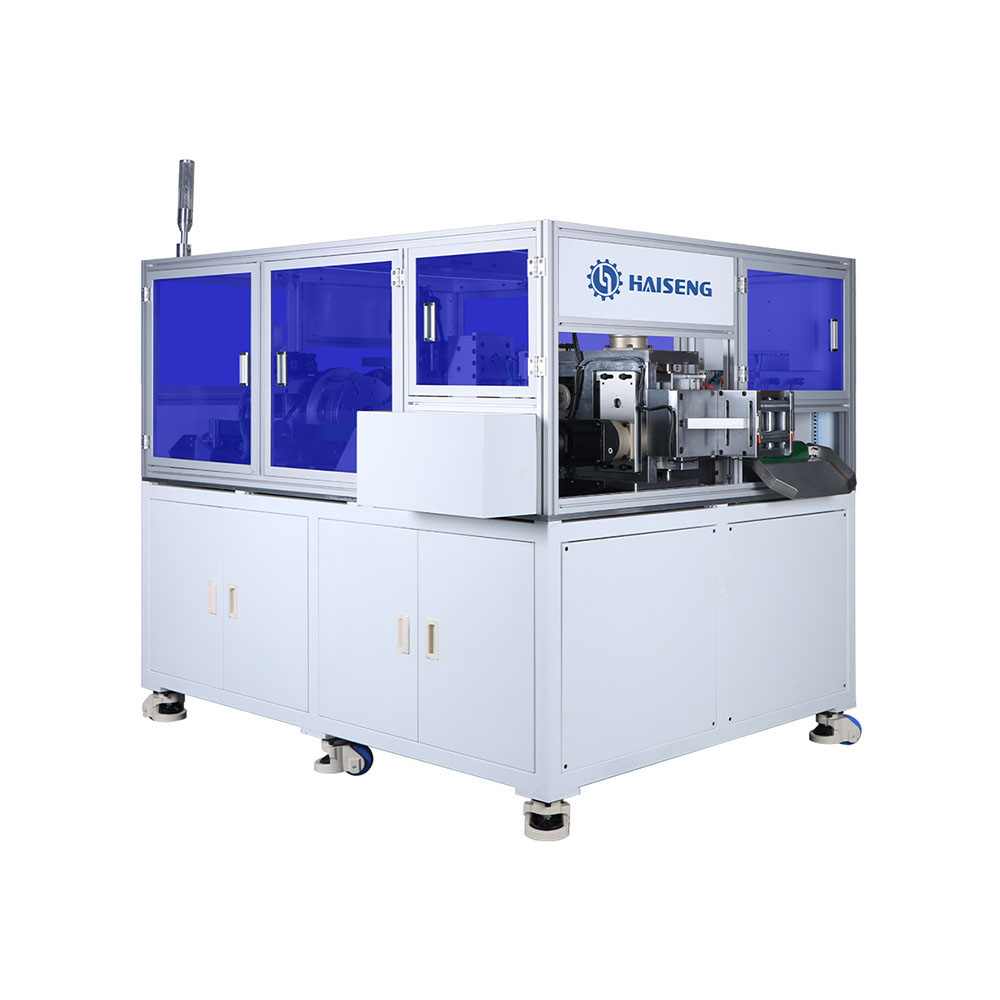

HS-880XZ-400 Fully Automatic Wire Cutting and Stripping Machine(Rotary Blade)

Service hotline

+8618938694287

Add to the wish list

Product consultation

Fully Automatic Wire Cutting and Stripping Machine Automatic Rotary Knife Wire Cut and Strip Machine Cable rotary stripping equipment

Key Attributes

HS Code	8479819000	Power	23000W
Voltage	AC 220V 50Hz	Equipment Weight	1600kg
Equipment Size	2853×1850×1624 mm	Displayed	19-inch industrial computer
Production Efficiency	30 s/pc	Cutting Length	1-99999mm
Cutting & Stripping Processing Range	30-400mm²	Stripping Length	Front 1-1000mm ;Rear1-1000 mm

Application Scenarios

Himinsen has accumulated extensive successful cases in high-end manufacturing sectors including new energy vehicles, charging guns, energy storage systems, AI servers, aerospace, medical devices, industrial electronics and household appliances. Leveraging its continuously innovative technological capabilities and efficient, reliable solution implementation, the company empowers global customers to achieve industrial upgrading and creates long-term core value.

Fully Automatic Wire Cutting and Stripping Machine Automatic Rotary Knife Wire Cut and Strip Machine Cable rotary stripping equipment

Product introduction

This equipment features servo drive control and belt-type feeding,with an integrated industrial computer for display and operation,supporting MES connectivity.It adopts a movable too holder design and supports 10-layer rotary cutting for precision jacket stripping.It is specifically configured for processing new energy wiring and charging gun cables.

Belt-type feeding

Servo drive control

Belt-type feeding

High precision stripping

MES connectivity

High precision stripping

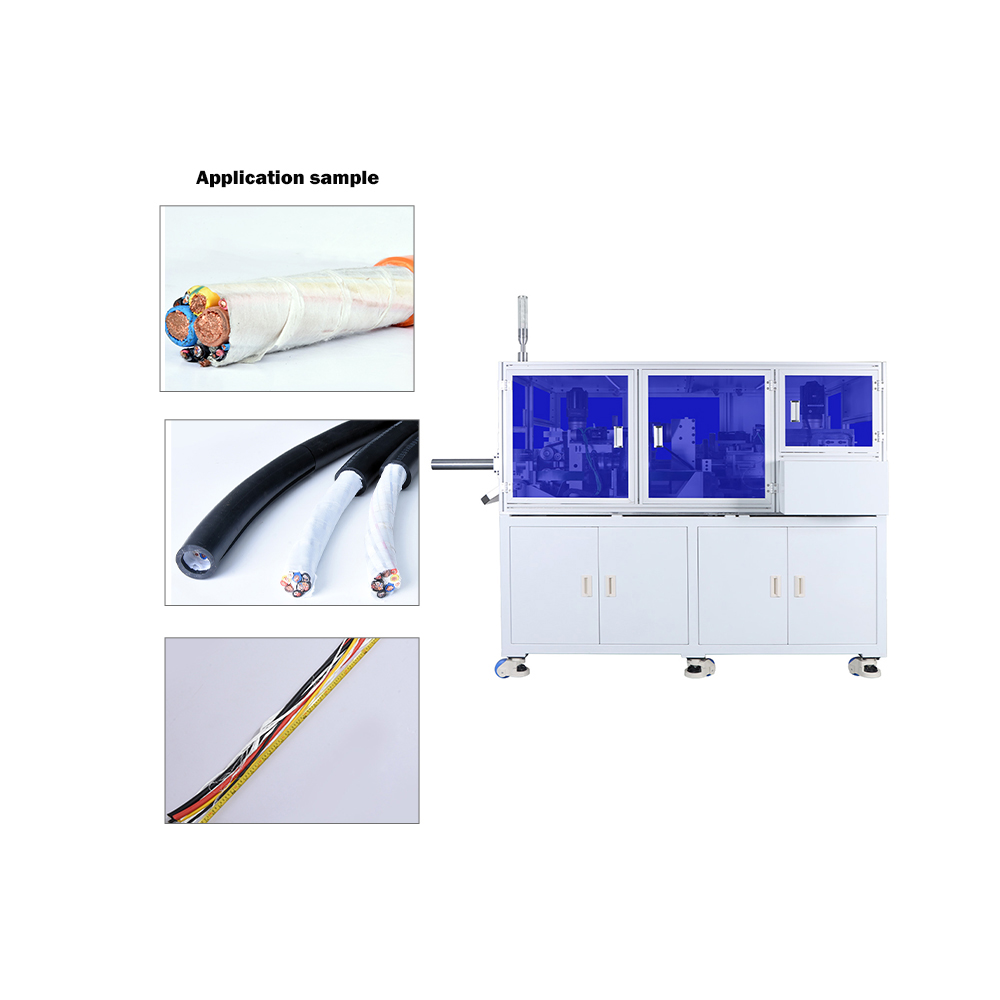

Sample Display

Comparison of similar product features

HS-880XZ-400 Fully Automatic Wire Cutting and Stripping Machine(Rotary Blade)

HS Code	8479819000
Power	23000W
Voltage	AC 220V 50Hz
Equipment Weight	1600kg
Equipment Size	2853×1850×1624 mm
Production Efficiency	30 s/pc
Cutting & Stripping Processing Range	30-400mm²

HS-880XZ-300 Fully Automatic Wire Cutting and Stripping Machine(Rotary Blade)

HS Code	8468800000
Power	3000W
Voltage	AC 220V 50Hz
Equipment Weight	1237kg
Equipment Size	2450×880×1610 mm
Production Efficiency	50 s/pc
Cutting & Stripping Processing Range	30-300mm²

HS-880XZ-120 Fully Automatic Wire Cutting and Stripping Machine(Rotary Blade)

HS Code	8479819000
Power	2000W
Voltage	AC 220V 50Hz
Equipment Weight	500kg
Equipment Size	20208001420 mm
Production Efficiency	25 s/pc
Cutting & Stripping Processing Range	6-120mm²

Product Name

HS Code

Power

Voltage

Equipment Weight

Equipment Size

Production Efficiency

Cutting & Stripping Processing Range

HS-880XZ-400 Fully Automatic Wire Cutting and Stripping Machine(Rotary Blade)	HS-880XZ-300 Fully Automatic Wire Cutting and Stripping Machine(Rotary Blade)	HS-880XZ-120 Fully Automatic Wire Cutting and Stripping Machine(Rotary Blade)
8479819000	8468800000	8479819000
23000W	3000W	2000W
AC 220V 50Hz	AC 220V 50Hz	AC 220V 50Hz
1600kg	1237kg	500kg
2853×1850×1624 mm	2450×880×1610 mm	20208001420 mm
30 s/pc	50 s/pc	25 s/pc
30-400mm²	30-300mm²	6-120mm²
