CNC Servo Terminal Crimping Machine

HS-SK10T CNC Servo Terminal Crimping Machine

Service hotline

+8618938694287

Add to the wish list

Product consultation

Product News Crimping Machine New Energy Large Cable Intelligent Servo Terminal Crimping Machine

Key Attributes

HS Code	8479819000	Power	2000W
Voltage	AC 220V 50Hz	Equipment Weight	340kg
Equipment Size	8686061650 mm	Displayed	Touch screen
Production Efficiency	1000pcs/h	Crimping Capacity	10T
Crimping Cable Range	6-50mm²	Crimping Stroke	30/40 mm(Switchable）
Pressure Monitoring	Baseplate Pressure Monitoring

Application Scenarios

Himinsen has accumulated extensive successful cases in high-end manufacturing sectors including new energy vehicles, charging guns, energy storage systems, AI servers, aerospace, medical devices, industrial electronics and household appliances. Leveraging its continuously innovative technological capabilities and efficient, reliable solution implementation, the company empowers global customers to achieve industrial upgrading and creates long-term core value.

Product News Crimping Machine New Energy Large Cable Intelligent Servo Terminal Crimping Machine

Product introduction

This equipment utilizes an advanced control system with full digital processing. After parameter presetting, it can automatically retrieve crimping data based on product specifications.Operational data is traceable. The machine is equipped with pressure sensors to monitor terminal crimping conditions in real time.Additionally, it features hierarchical authority management and barcode scanning recognition.

Simple operation

High crimping accuracy

Low maintenance cost

Support for pressure detection

Related accessories

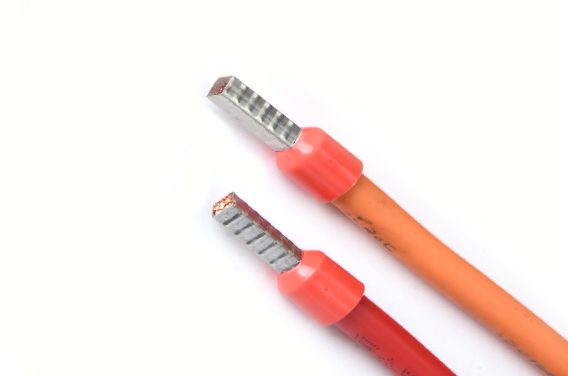

Sample Display

Comparison of similar product features

HS-SK10T CNC Servo Terminal Crimping Machine

Power	2000W
Voltage	AC 220V 50Hz
Equipment Weight	340kg
Equipment Size	8686061650 mm
Crimping Capacity	10T
Crimping Cable Range	6-50mm²
Crimping Stroke	30/40 mm(Switchable）
Pressure Monitoring	Baseplate Pressure Monitoring
Production Efficiency	1000pcs/h

HS-SK4T CNC Servo Terminal Crimping Machine

Power	2000W
Voltage	AC 220V 50Hz
Equipment Weight	280 kg
Equipment Size	8005361570 mm
Crimping Capacity	4T
Crimping Cable Range	0.5-16mm²
Crimping Stroke	30/40 mm(Switchable）
Pressure Monitoring	Optional
Production Efficiency	1200pcs/h

HS-SK20T CNC Servo Terminal Crimping Machine

Power	2000W
Voltage	AC 220V 50Hz
Equipment Weight	400kg
Equipment Size	7676111400 mm
Crimping Capacity	20T
Crimping Cable Range	6-120mm²
Crimping Stroke	60 mm
Pressure Monitoring	Baseplate Pressure Monitoring
Production Efficiency	720pcs/h

Product Name

Power

Voltage

Equipment Weight

Equipment Size

Crimping Capacity

Crimping Cable Range

Crimping Stroke

Pressure Monitoring

Production Efficiency

HS-SK10T CNC Servo Terminal Crimping Machine	HS-SK4T CNC Servo Terminal Crimping Machine	HS-SK20T CNC Servo Terminal Crimping Machine
2000W	2000W	2000W
AC 220V 50Hz	AC 220V 50Hz	AC 220V 50Hz
340kg	280 kg	400kg
8686061650 mm	8005361570 mm	7676111400 mm
10T	4T	20T
6-50mm²	0.5-16mm²	6-120mm²
30/40 mm(Switchable）	30/40 mm(Switchable）	60 mm
Baseplate Pressure Monitoring	Optional	Baseplate Pressure Monitoring
1000pcs/h	1200pcs/h	720pcs/h
