Intelligent Servo Terminal Crimping Machine

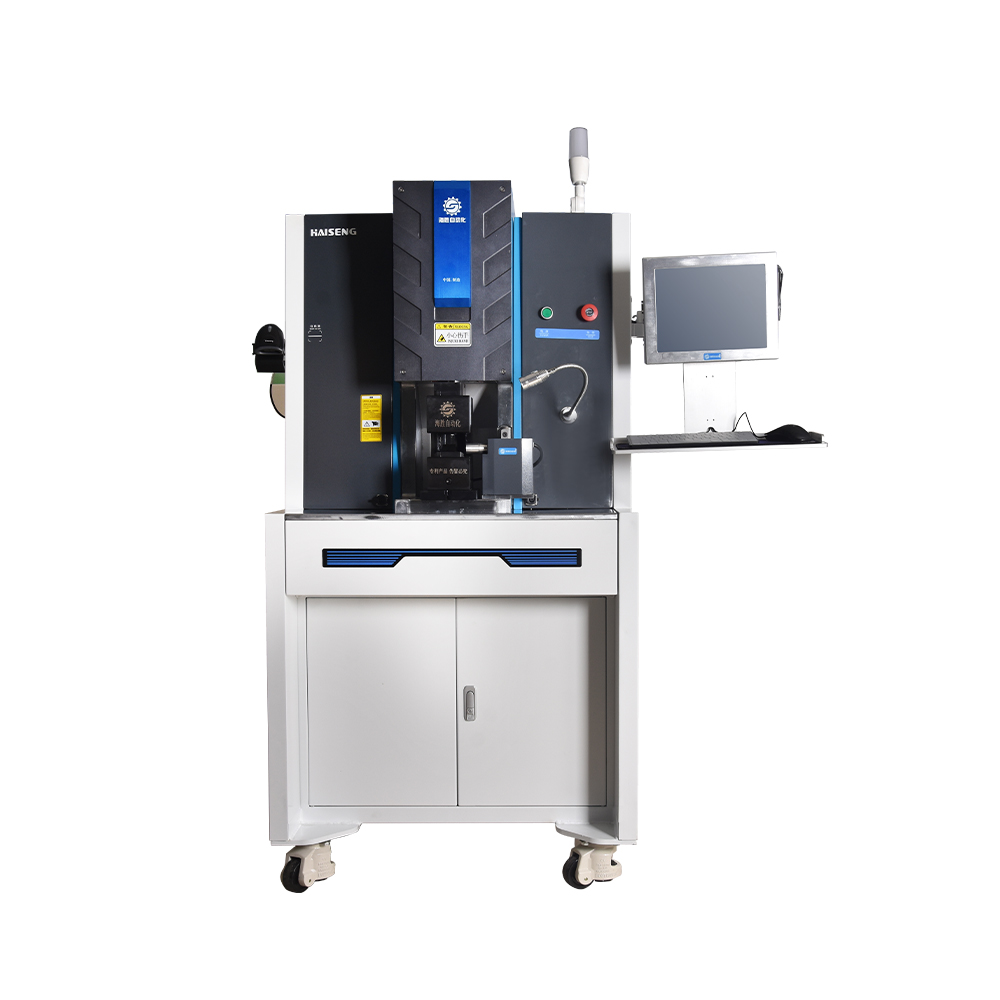

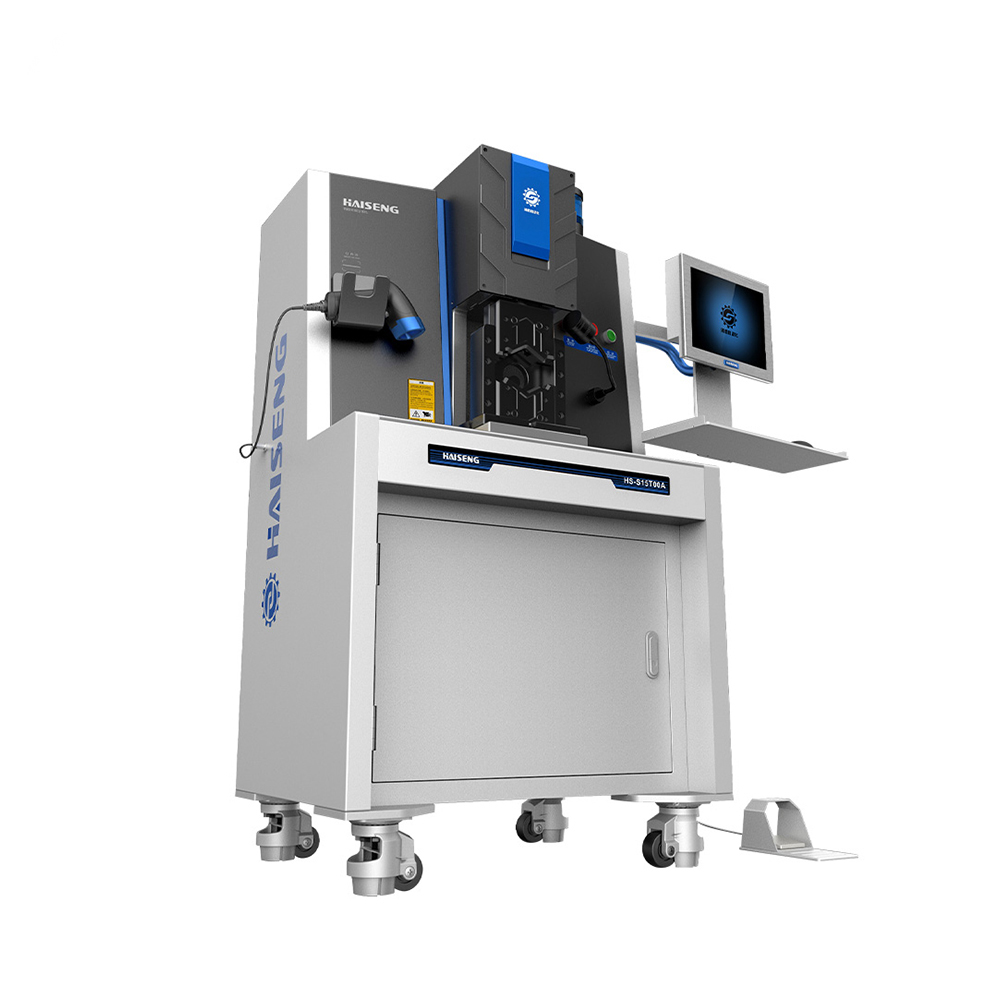

HS-SG60T Intelligent Servo Terminal Crimping Machine

Service hotline

+8618938694287

Add to the wish list

Product consultation

Product News Crimping Machine New Energy Large Cable Intelligent Servo Terminal Crimping Machine

Key Attributes

HS Code	8479819000	Power	7500W
Voltage	AC 380V 50Hz	Equipment Weight	1200kg
Equipment Size	12009502100 mm	Displayed	Industrial computer
Production Efficiency	200-400pcs/h	Crimping Capacity	60T
Crimping Cable Range	35-400mm²	Crimping Stroke	75 mm
Pressure Monitoring	Baseplate Pressure Monitoring

Application Scenarios

Widely applied to high-voltage harness processing of AC/DC charging guns, new energy vehicles, energy storage, photovoltaics and rail transit. The full traceable crimping quality meets strict automotive manufacturing standards.

Product News Crimping Machine New Energy Large Cable Intelligent Servo Terminal Crimping Machine

Product introduction

Compatible with large wires, featuring full-process pressure monitoring, MES traceability and QR code management. It provides precise hexagonal/four-point/quadrilateral crimping and targets new energy high-voltage harness assembly lines.

Simple operation

High crimping accuracy

Low maintenance cost

Support for pressure detection

Related accessories

Sample Display

Comparison of similar product features

HS-SG60T Intelligent Servo Terminal Crimping Machine

Voltage	AC 380V 50Hz
Equipment Weight	1200kg
Equipment Size	12009502100 mm
Crimping Capacity	60T
Crimping Cable Range	35-400mm²
Crimping Stroke	75 mm
Pressure Monitoring	Baseplate Pressure Monitoring
Production Efficiency	200-400pcs/h
Power	7500W

HS-SG40T Intelligent Servo Terminal Crimping Machine

Voltage	AC 220V 50Hz
Equipment Weight	650kg
Equipment Size	12457701960 mm
Crimping Capacity	40T
Crimping Cable Range	16-300mm²
Crimping Stroke	75 mm
Pressure Monitoring	Baseplate Pressure Monitoring
Production Efficiency	400-500pcs/h
Power	4500W

HS-SG20T Intelligent Servo Terminal Crimping Machine

Voltage	AC 220V 50Hz
Equipment Weight	400kg
Equipment Size	11006111400 mm
Crimping Capacity	20T
Crimping Cable Range	6-120mm²
Crimping Stroke	60 mm
Pressure Monitoring	Baseplate Pressure Monitoring
Production Efficiency	720pcs/h
Power	2000W

HS-SG10T Intelligent Servo Terminal Crimping Machine

Voltage	AC 220V 50Hz
Equipment Weight	365 kg
Equipment Size	8686061650 mm
Crimping Capacity	10T
Crimping Cable Range	6-50mm²
Crimping Stroke	30/40 mm(Switchable）
Pressure Monitoring	Baseplate Pressure Monitoring
Production Efficiency	1000pcs/h
Power	2000W

HS-SG4T Intelligent Servo Terminal Crimping Machine

Voltage	AC 220V 50Hz
Equipment Weight	300 kg
Equipment Size	8685361570 mm
Crimping Capacity	4T
Crimping Cable Range	0.5-16mm²
Crimping Stroke	30 mm
Pressure Monitoring	Oveshead Pressure Mionitaring
Production Efficiency	1200pcs/h
Power	2000W

Product Name

Voltage

Equipment Weight

Equipment Size

Crimping Capacity

Crimping Cable Range

Crimping Stroke

Pressure Monitoring

Production Efficiency

Power

HS-SG60T Intelligent Servo Terminal Crimping Machine	HS-SG40T Intelligent Servo Terminal Crimping Machine	HS-SG20T Intelligent Servo Terminal Crimping Machine	HS-SG10T Intelligent Servo Terminal Crimping Machine	HS-SG4T Intelligent Servo Terminal Crimping Machine
AC 380V 50Hz	AC 220V 50Hz	AC 220V 50Hz	AC 220V 50Hz	AC 220V 50Hz
1200kg	650kg	400kg	365 kg	300 kg
12009502100 mm	12457701960 mm	11006111400 mm	8686061650 mm	8685361570 mm
60T	40T	20T	10T	4T
35-400mm²	16-300mm²	6-120mm²	6-50mm²	0.5-16mm²
75 mm	75 mm	60 mm	30/40 mm(Switchable）	30 mm
Baseplate Pressure Monitoring	Baseplate Pressure Monitoring	Baseplate Pressure Monitoring	Baseplate Pressure Monitoring	Oveshead Pressure Mionitaring
200-400pcs/h	400-500pcs/h	720pcs/h	1000pcs/h	1200pcs/h
7500W	4500W	2000W	2000W	2000W
