This equipment utilizes an electronic control system for precise measurement and control. It collects force data in real‑time via sensors and transmits it to the display, allowing for simultaneous monitoring of test speed parameters. Its integrated operation interface is designed to be simple and intuitive, effectively enhancing the efficiency of quality inspection on the production line.

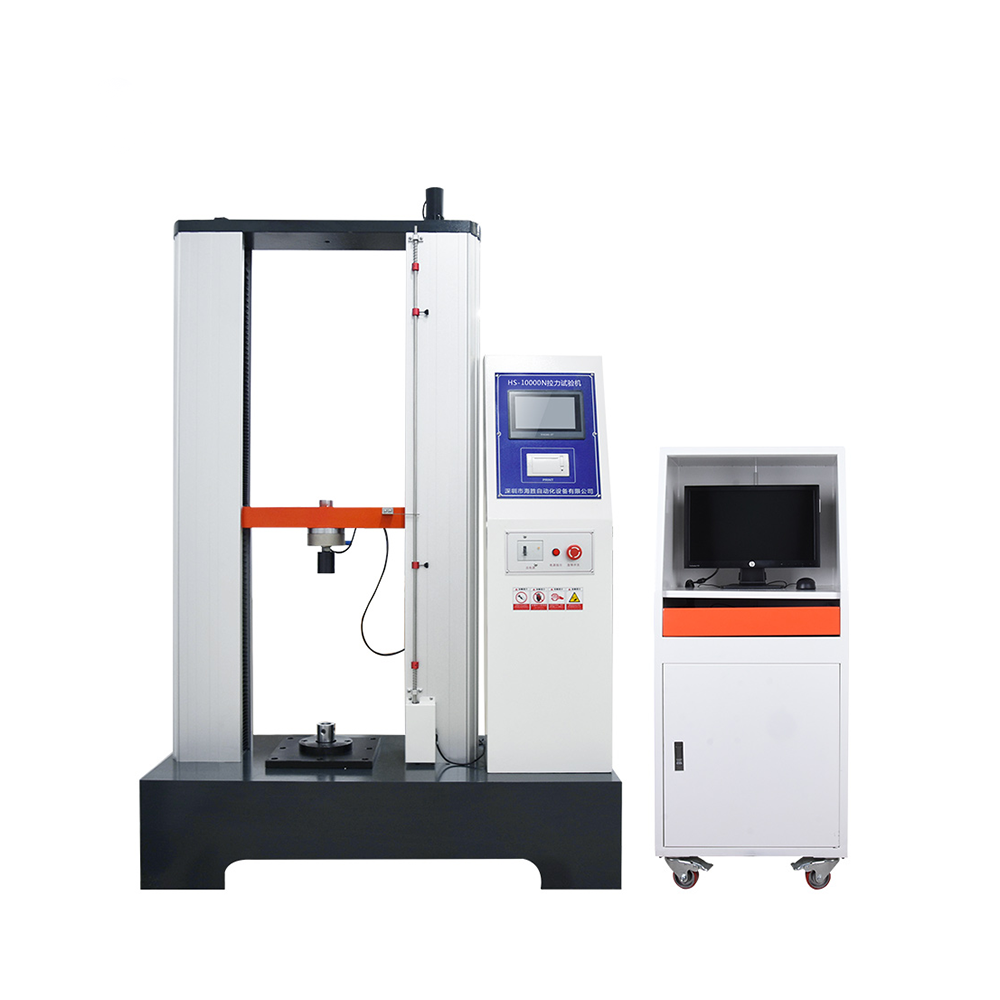

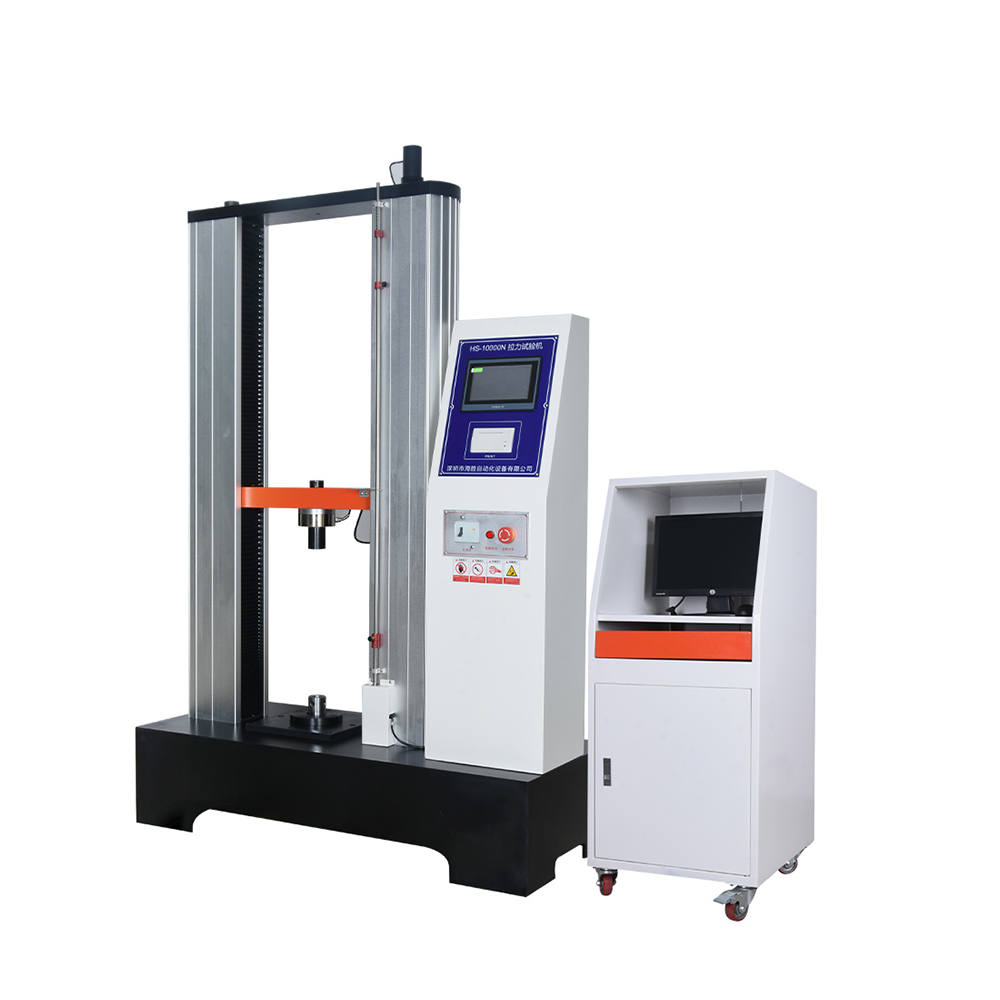

HS‑10000N‑D tensile testing machine is equipped with 400W/750W power (based on force range),AC 220V 50Hz,net weight 200kg .It supports 1000kg maximum load and adjustable test speed from 0.1‑500mm/min with 0.5 accuracy class. It owns 60mm effective test width and 600mm height‑expandable effective tensile space.

HS‑20000N‑D tensile testing machine works with AC 220V 50Hz,net weight 200kg. It achieves 2000kg maximum load with adjustable test speed 0.1‑500mm/min and 0.5 accuracy class. It features 390mm widenable effective test width and 600mm height‑expandable effective tensile space. Force measurement accuracy is within ±0.5% of indicated value,displacement measurement accuracy within ±0.2% of indicated value,ideal for heavy‑duty wire harness and material mechanical performance testing.

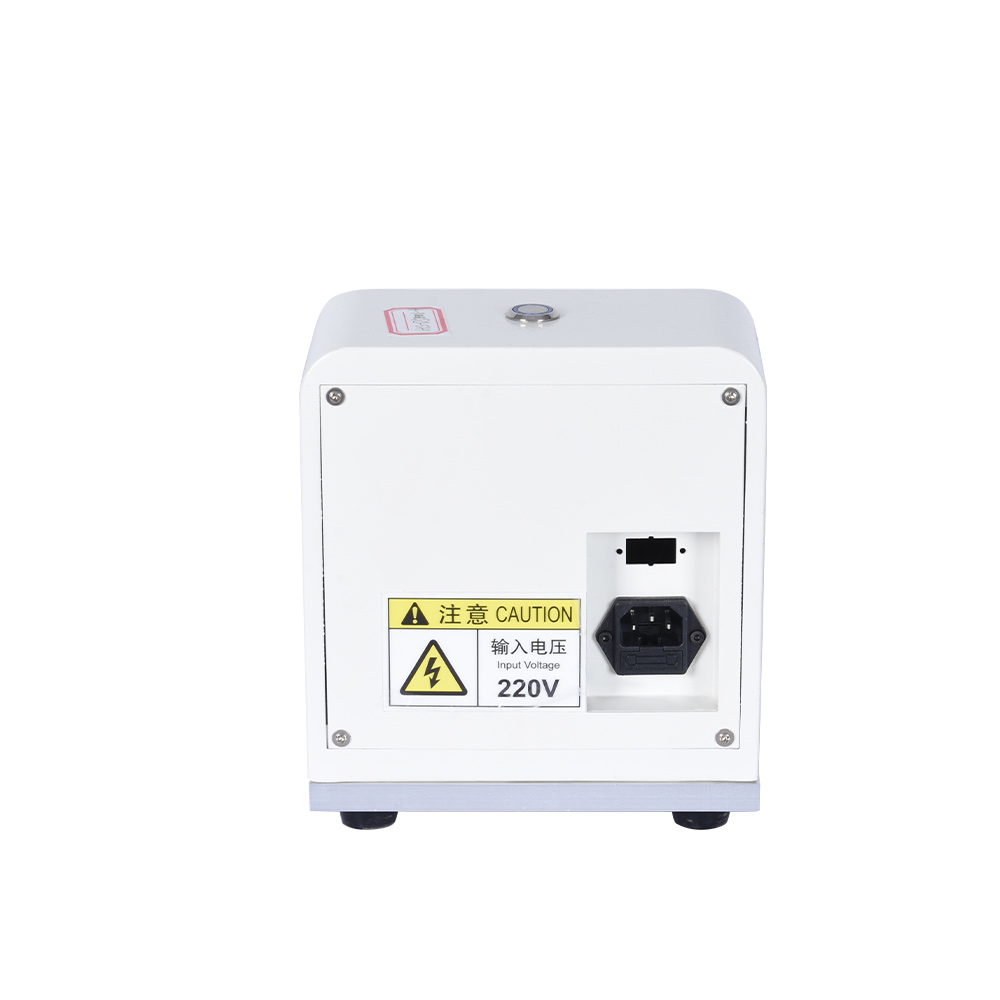

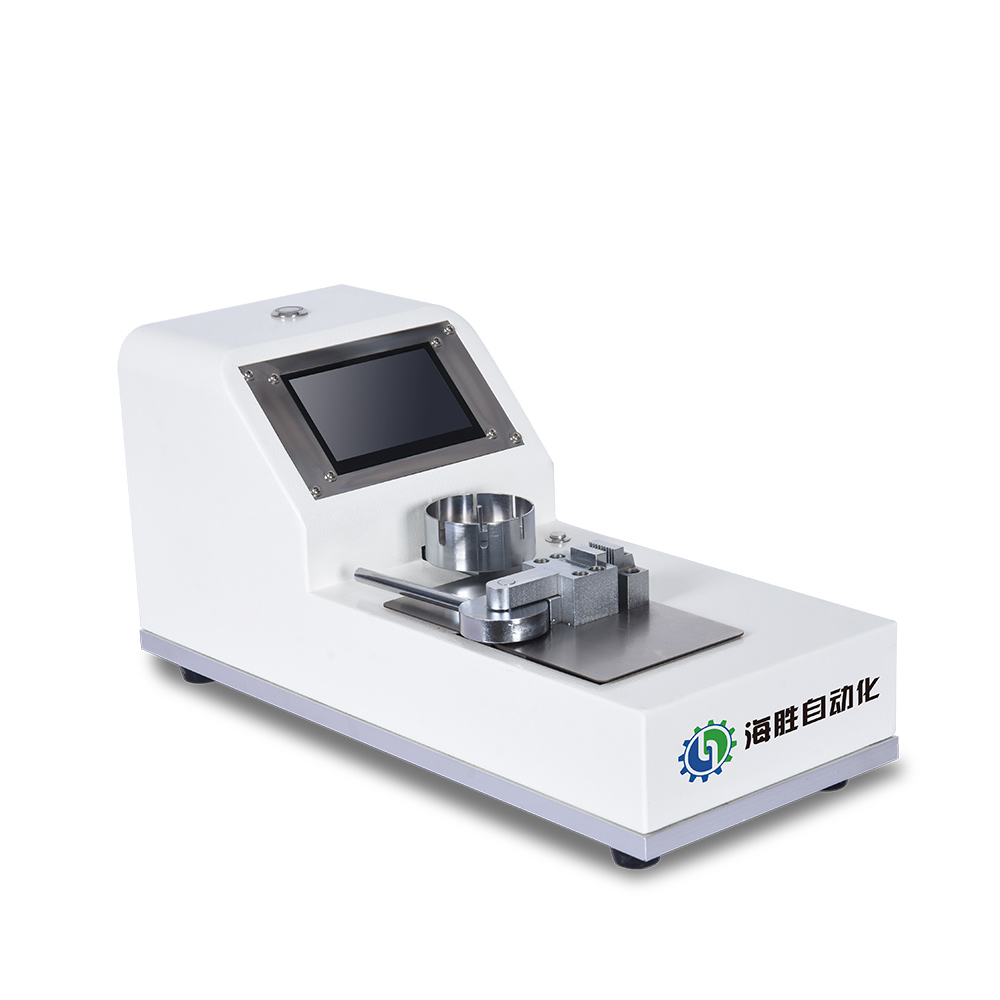

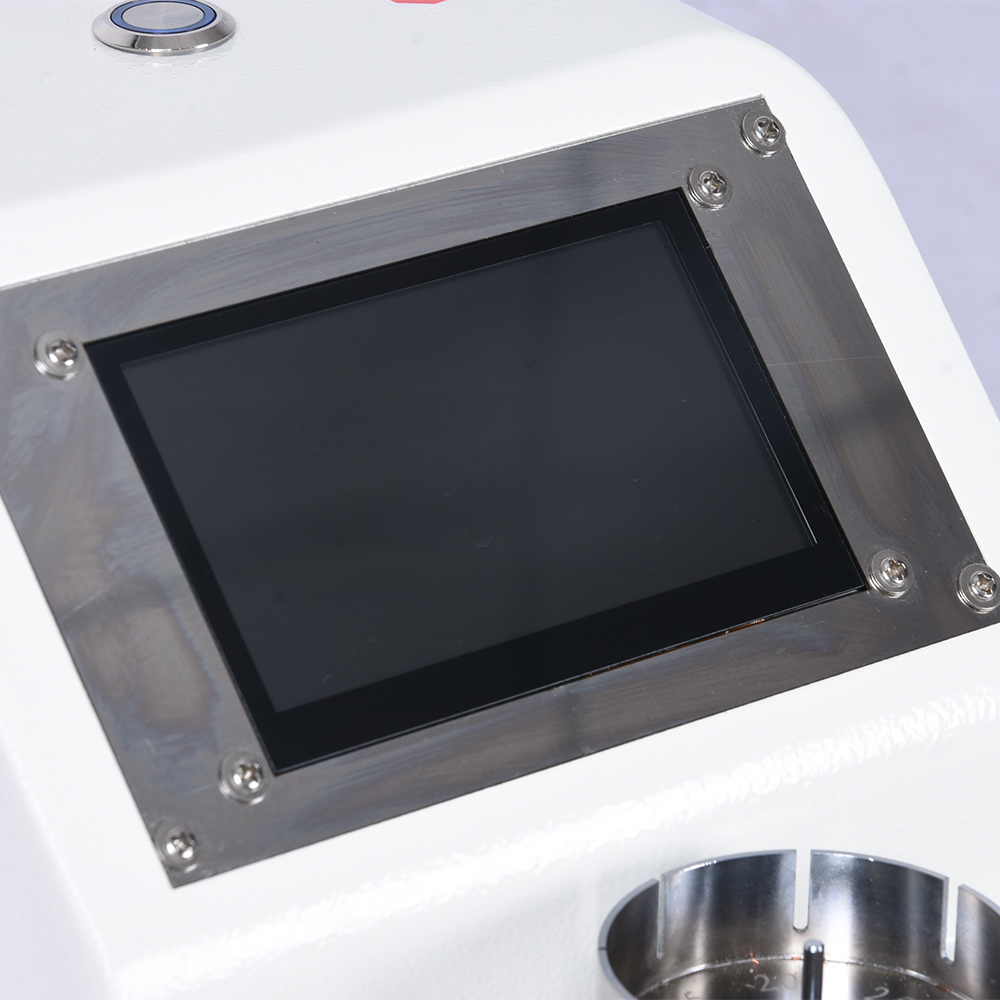

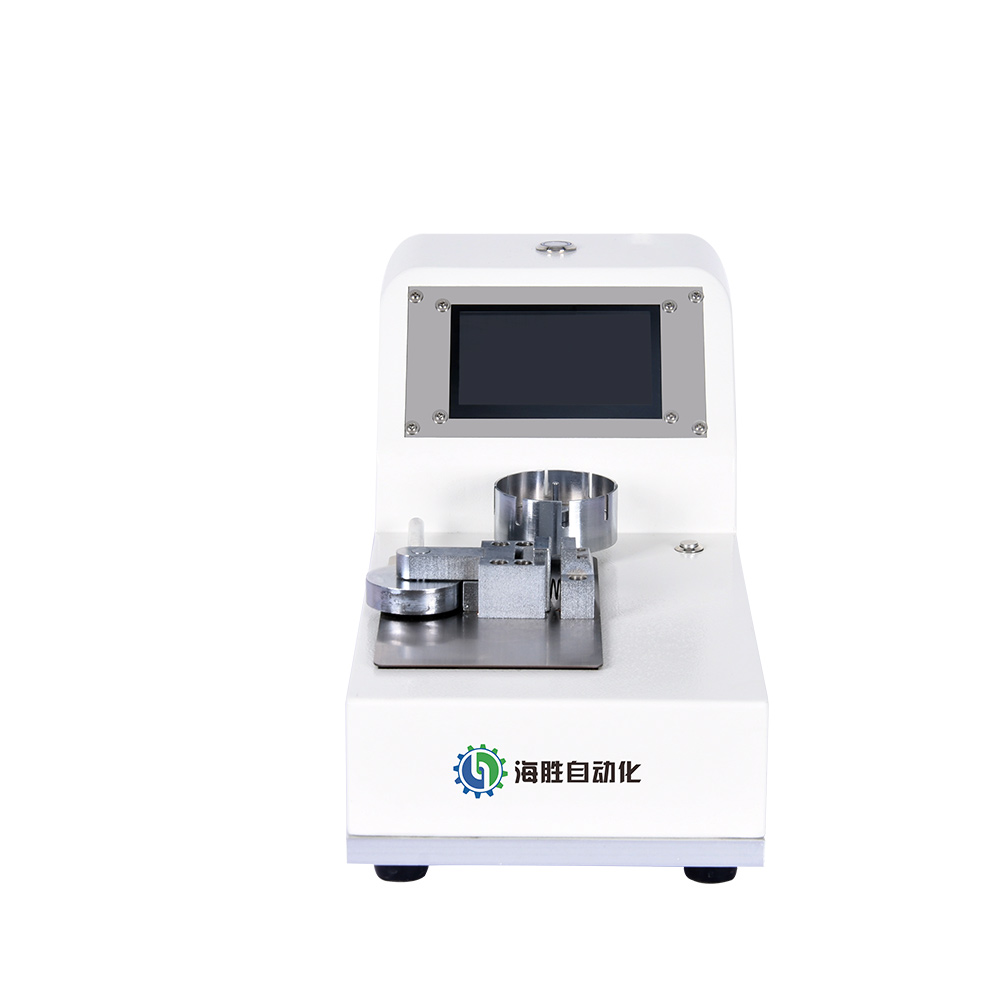

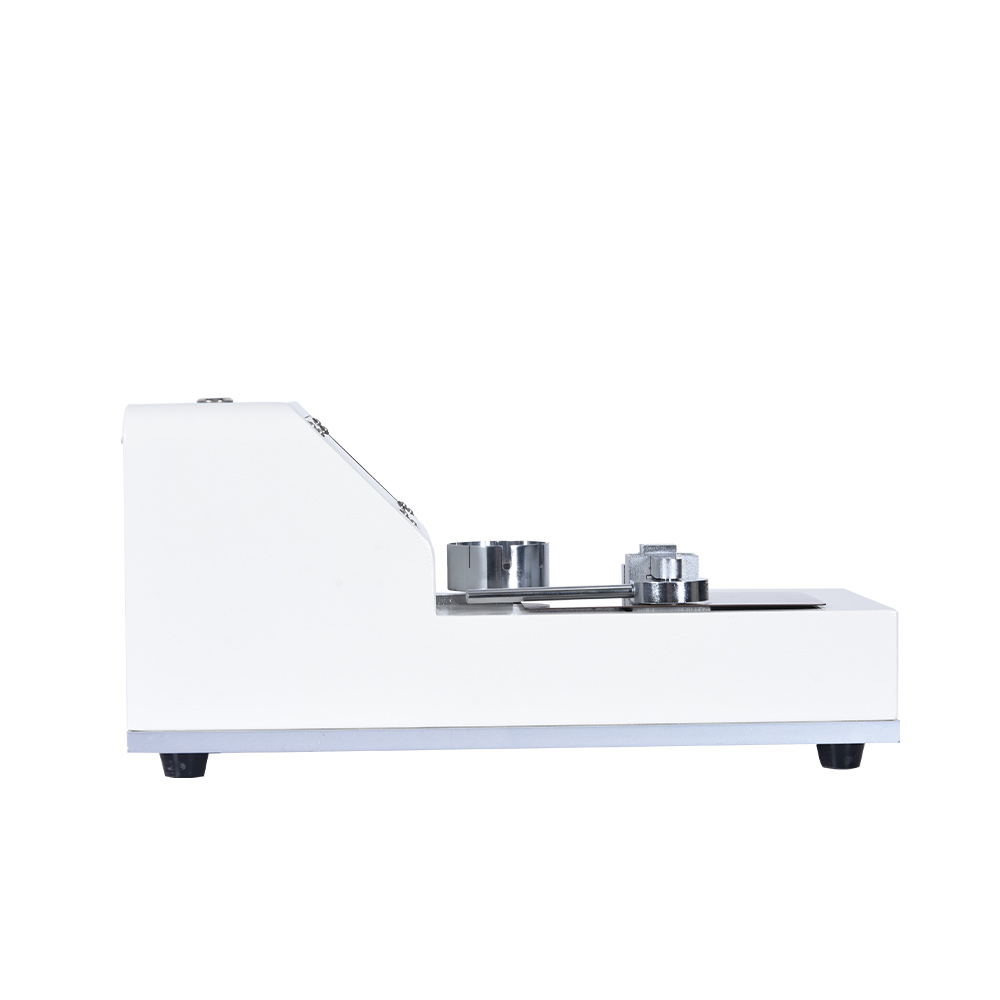

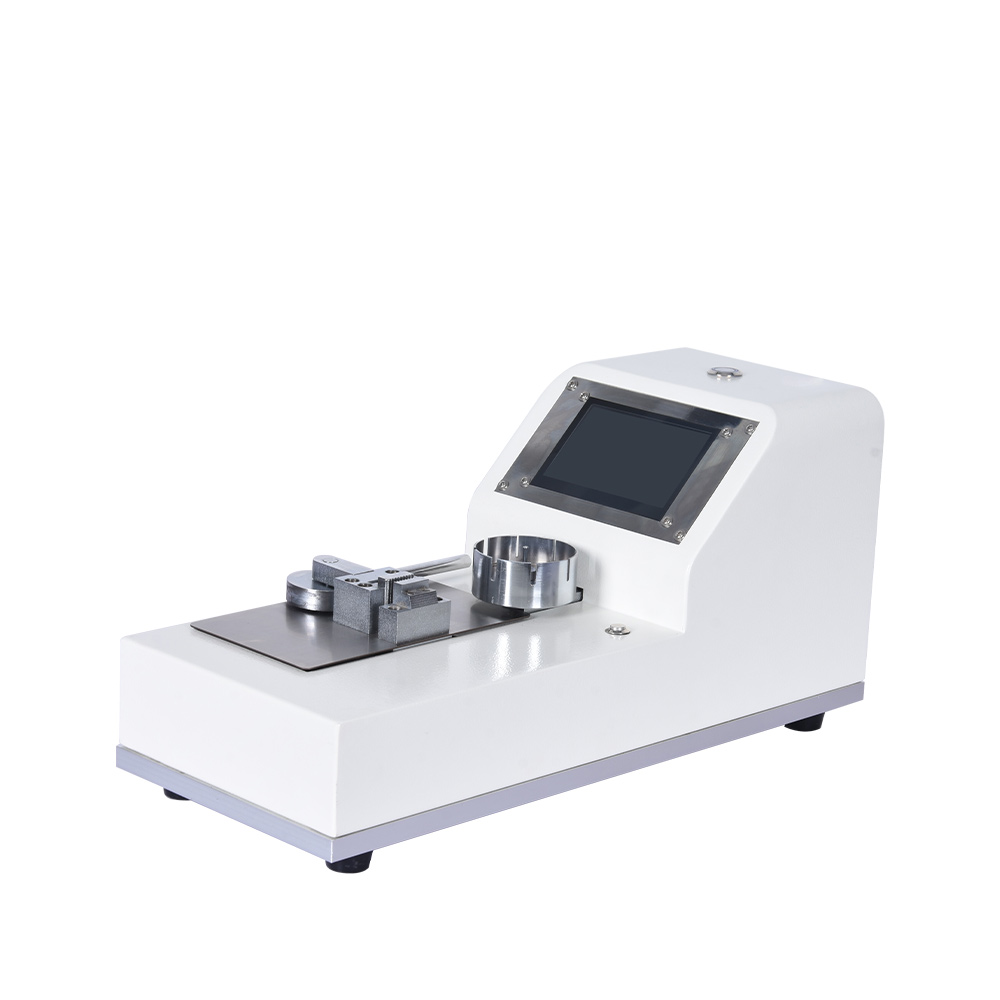

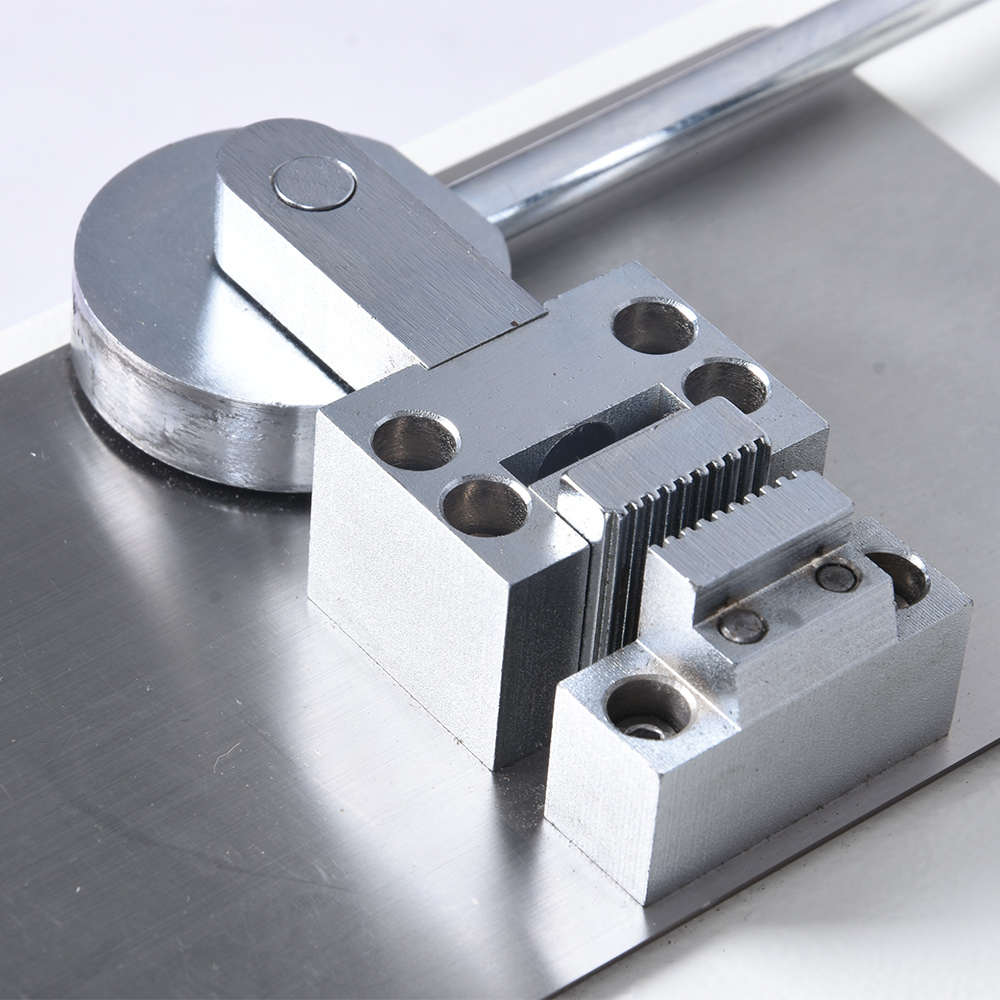

HS‑D500N‑H tensile testing machine adopts 100W power with AC 220V 50Hz,light‑weight 10kg and compact dimension 430180210 mm. It supports 50kg maximum load and adjustable test speed ranging from 10‑800mm/min with force measurement accuracy of ±0.04kg. Compact desktop design makes it suitable for tensile test of small wire harness and tiny samples.
