HMS‑D00 Ultrasonic Terminal Welding Machine, 4000W power, 20KHz operating frequency, suitable for welding 2.5‑25mm² copper wire and 2.5‑35mm² aluminium wire, with a capacity of 120‑150pcs/h. Bench‑type semi‑automatic model with 4‑cylinder double‑solenoid‑valve control system and industrial touch screen. Self‑developed core components enable welding of copper/tinned/aluminum wires to copper/aluminum terminals. Widely used in automotive wire harness, energy‑storage battery, new‑energy electronic control and industrial‑control equipment wire harness processing.

HMS‑D00L Ultrasonic Terminal Welding Machine, 4000W power, 20KHz operating frequency, suitable for welding 2.5‑25mm² copper wire and 2.5‑35mm² aluminum wire, with a capacity of 120‑150pcs/h. Bench‑type semi‑automatic model with 4‑cylinder double‑solenoid‑valve control system and industrial touch screen. Self‑developed core components enable welding of copper/tinned/aluminum wires to copper/aluminum terminals, optional automatic feeding mechanism available. Widely used in automotive wire harness, energy‑storage battery, new‑energy electronic control and industrial‑control equipment wire harness processing.

HMS‑D01Z Ultrasonic Automatic Terminal Welding Machine, 9000W, 20KHz, 170‑180pcs/h. Welding harness range: 6‑95 mm² copper wire; 6‑95 mm² aluminium wire, equipped with Himinsen self‑developed ultrasonic unit. Features automatic loading & unloading, 3‑in‑one function for wire cutting, stripping and welding. Supports MES connection, storage of 100,000 sets of welding data, multi‑level user rights management and multilingual switching to prevent false weld, cold weld and mis‑welding.

HS‑DTC150 Ultrasonic Automatic Welding Machine, 13000W, 20KHz, 60‑80pcs/h. Welding harness range: 16‑120 mm² copper wire; 16‑150 mm² aluminium wire. Adopts manipulator automatic feeding, equipped with CCD vision, air‑pressure, safety‑door and lateral‑thrust multi‑detection. Features modular design and intelligent control system, supports industrial PC with MES connection. High‑precision vision system, energy‑saving & eco‑friendly for higher production yield.

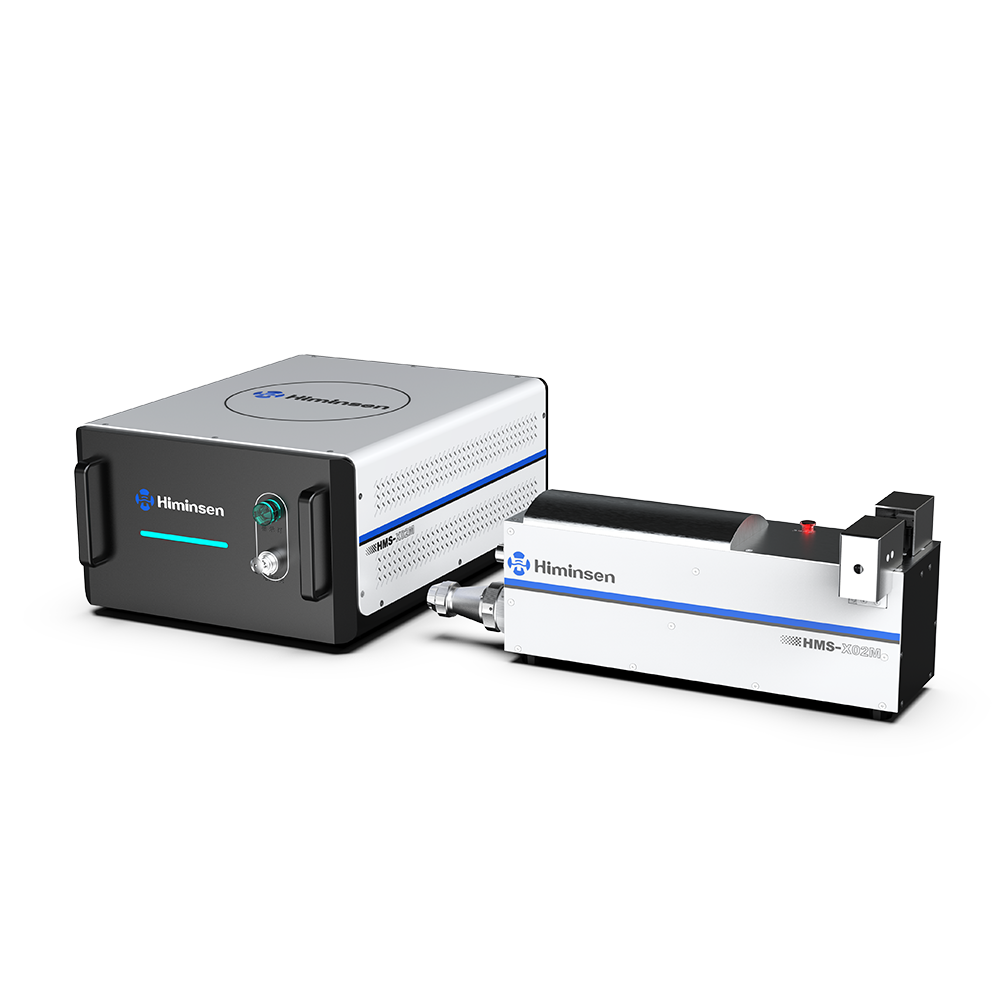

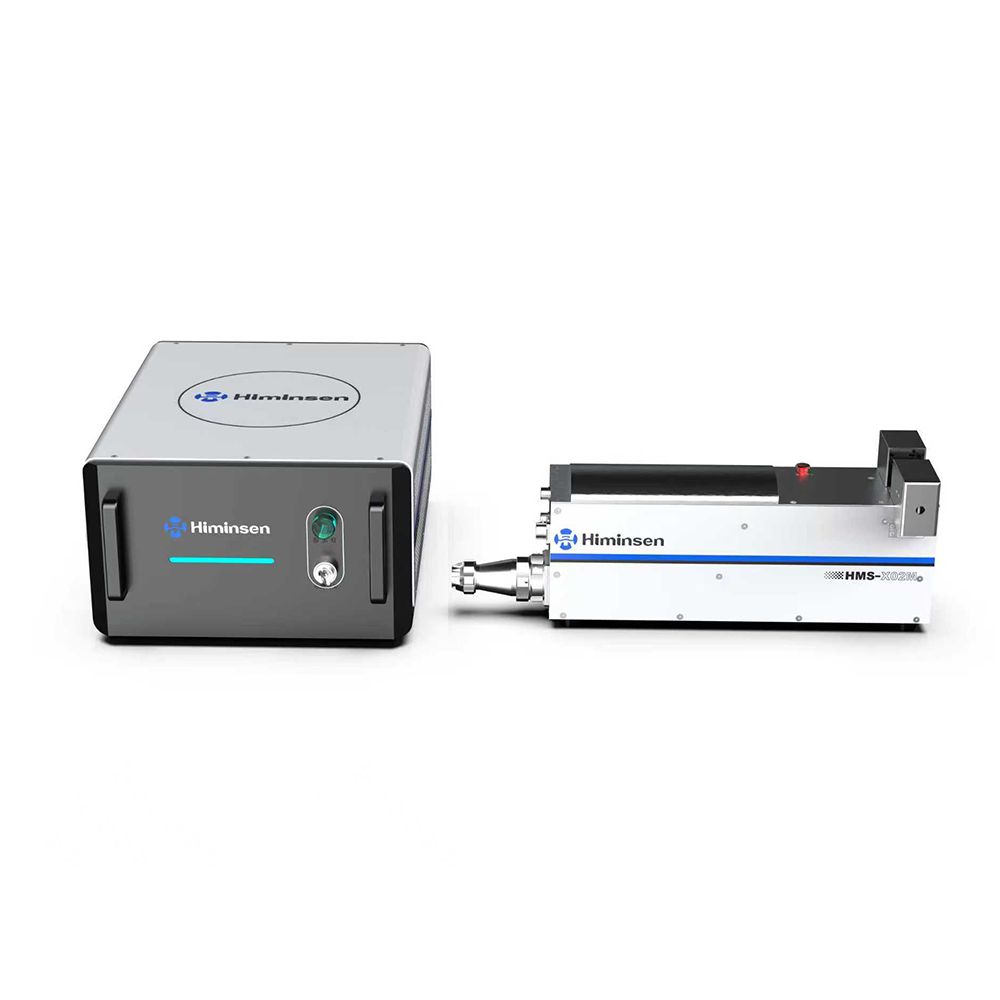

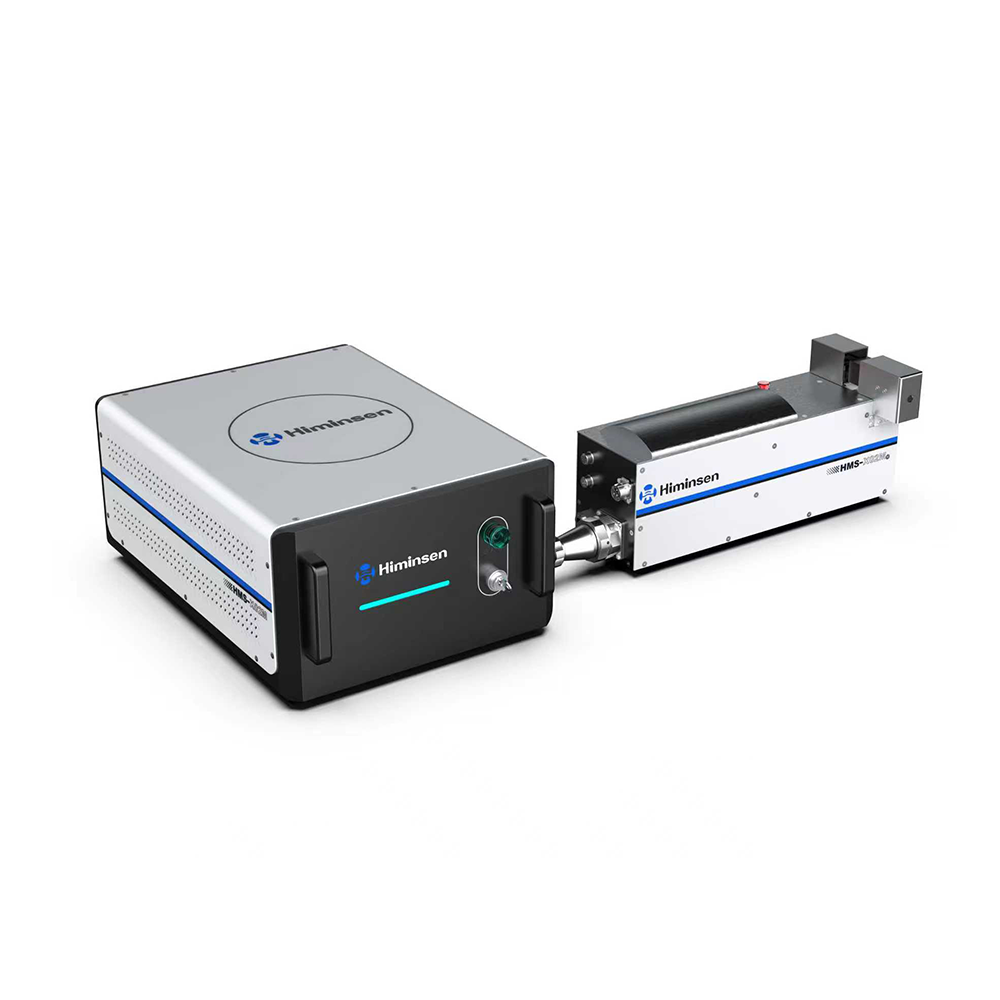

HMS‑X02M Ultrasonic Wire Harness Welding Machine, 2000W, 20KHz. For 0.2‑20mm² copper wire, capacity 200‑400pcs/h. Compact 38kg lightweight body with touch‑screen, perfect for small‑medium gauge wire harness processing.

HMS‑D00M Ultrasonic Terminal Welding Machine, 2000W power, 20KHz operating frequency, suitable for welding 1.5‑12mm² copper wire and 1.5‑16mm² aluminium wire, with a capacity of 120‑180pcs/h. Bench‑type semi‑automatic model with 4‑cylinder double‑solenoid‑valve control system and 10.1‑inch touch all‑in‑one computer, supporting storage of 100,000 sets of welding data. Self‑developed core components enable welding of copper/tinned/aluminum wires to copper/aluminum terminals. Widely used in automotive wire harness, energy‑storage battery, new‑energy electronic control and industrial‑control equipment wire harness processing.

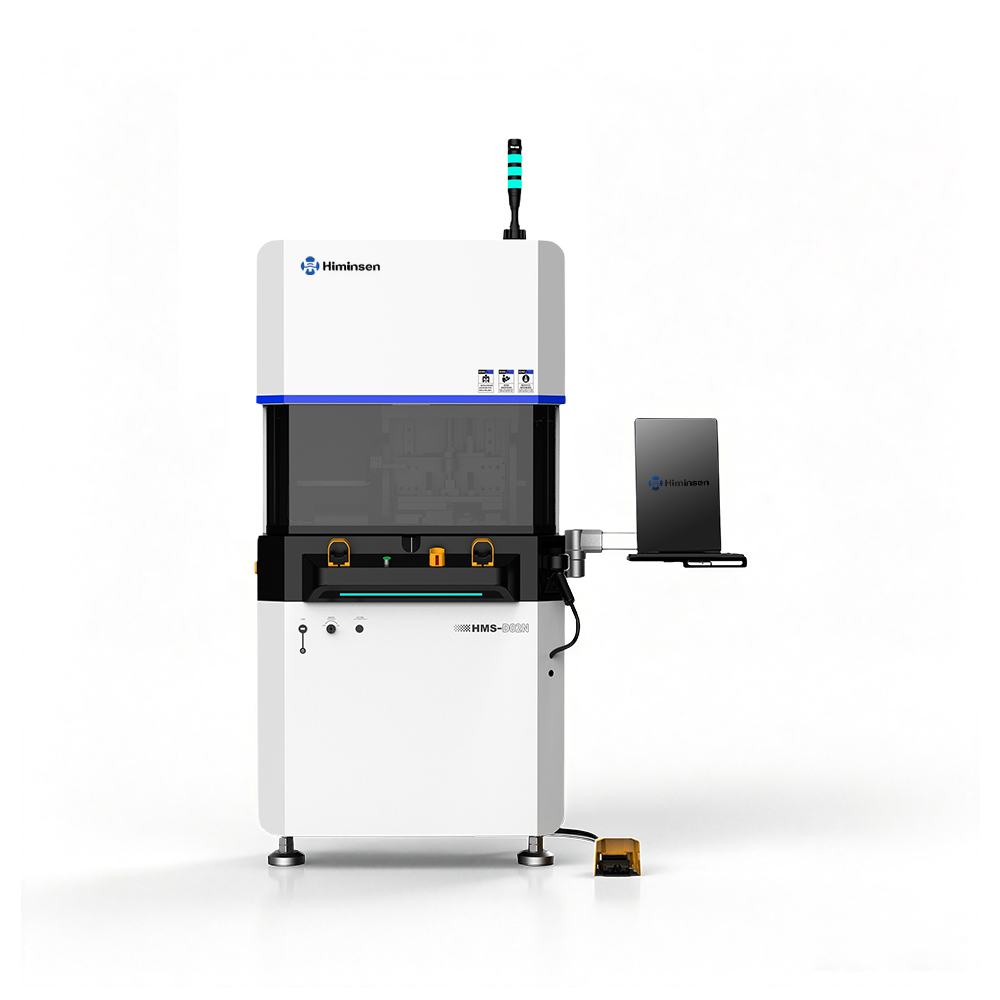

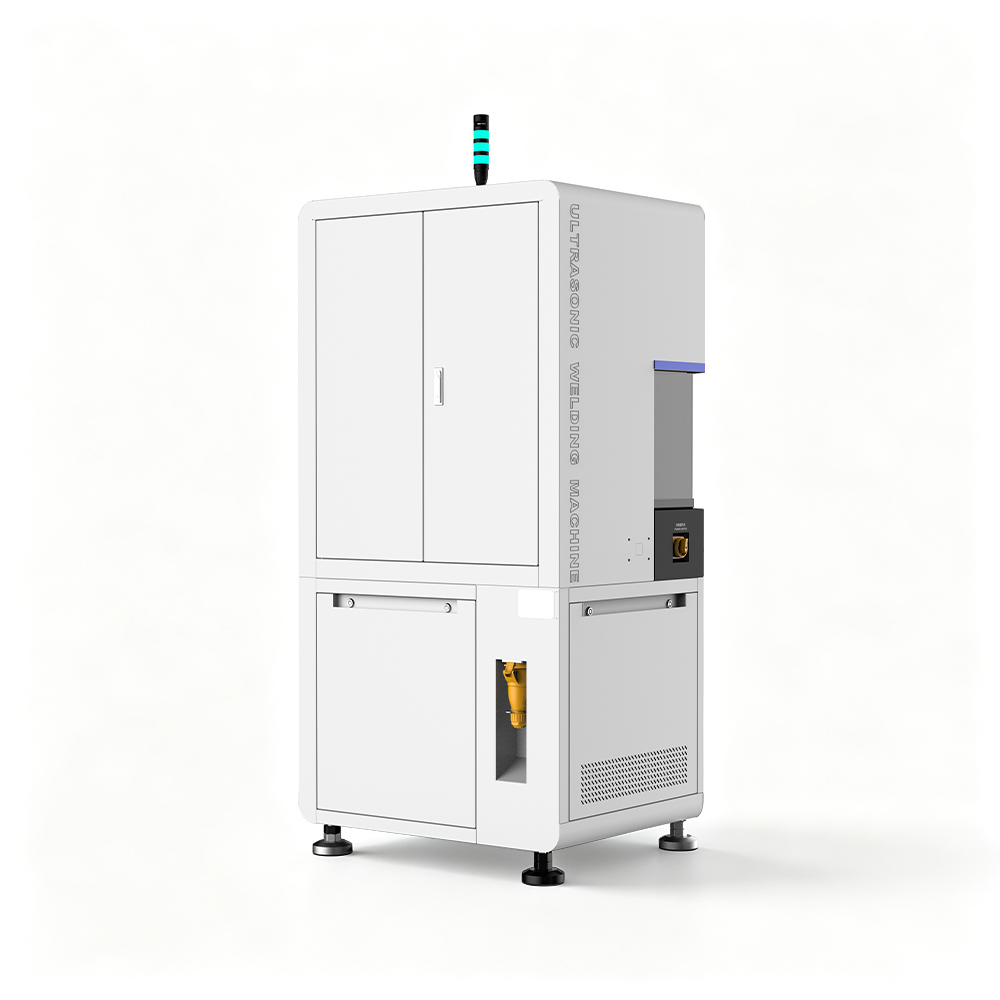

HMS‑D02N Ultrasonic Terminal Welding Machine, 13000W, 20KHz, 120‑150pcs/h. Welding harness range: ≤6 mm² copper wire; ≤8 mm² aluminium wire, equipped with Himinsen self‑developed ultrasonic unit. Four‑cylinder double‑solenoid‑valve control system with ergonomic height adjustment. Supports MES connection, storage of 100,000 sets of welding data, multi‑level user rights management and multilingual switching to prevent false weld, cold weld and mis‑welding.

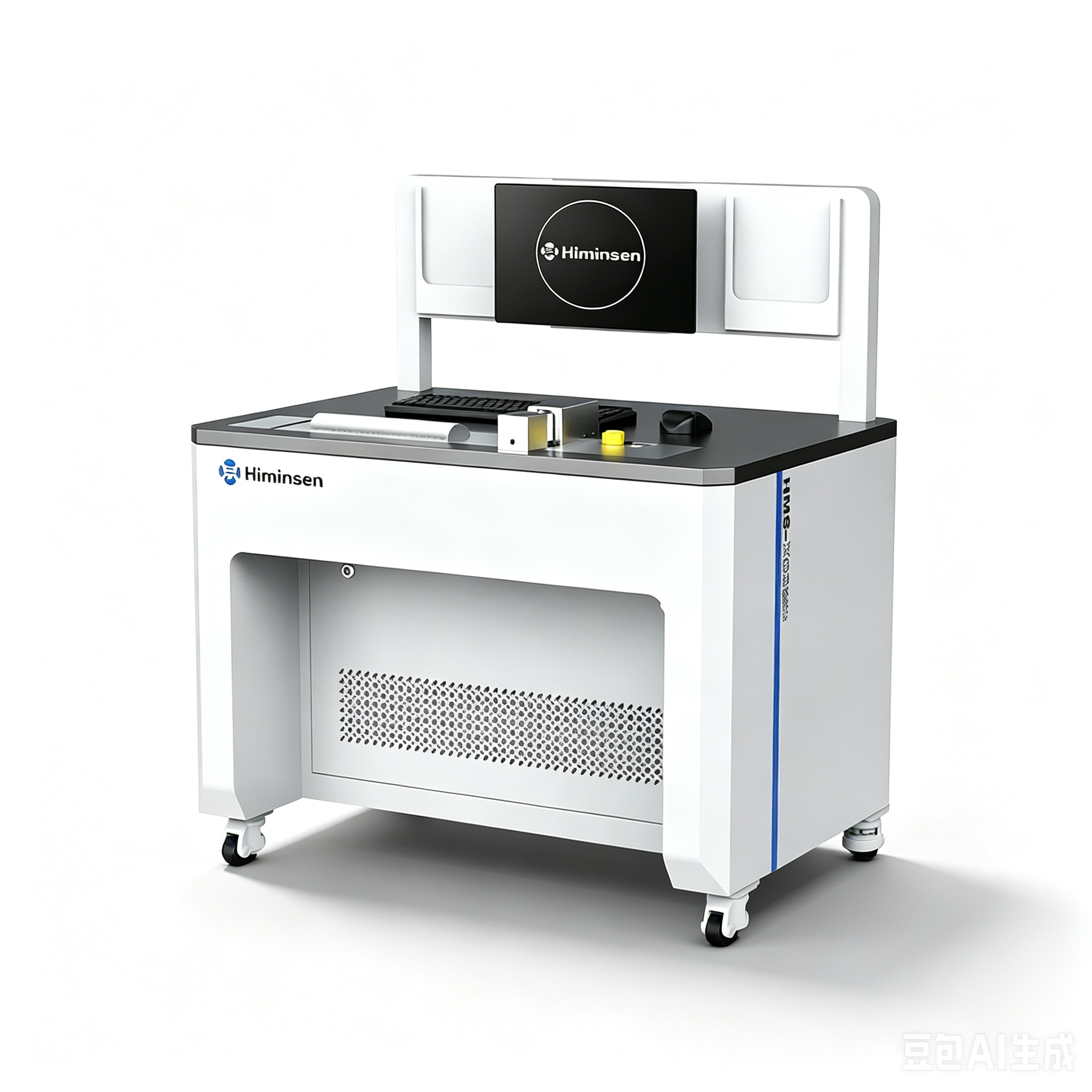

HMS‑X02 Ultrasonic Wire Harness Welding Machine, 6000W, 20KHz. For 0.5‑50mm² bare copper wire, output 200‑400pcs/h. Industrial host & touch‑screen, ideal for large‑size new‑energy wire harness production.

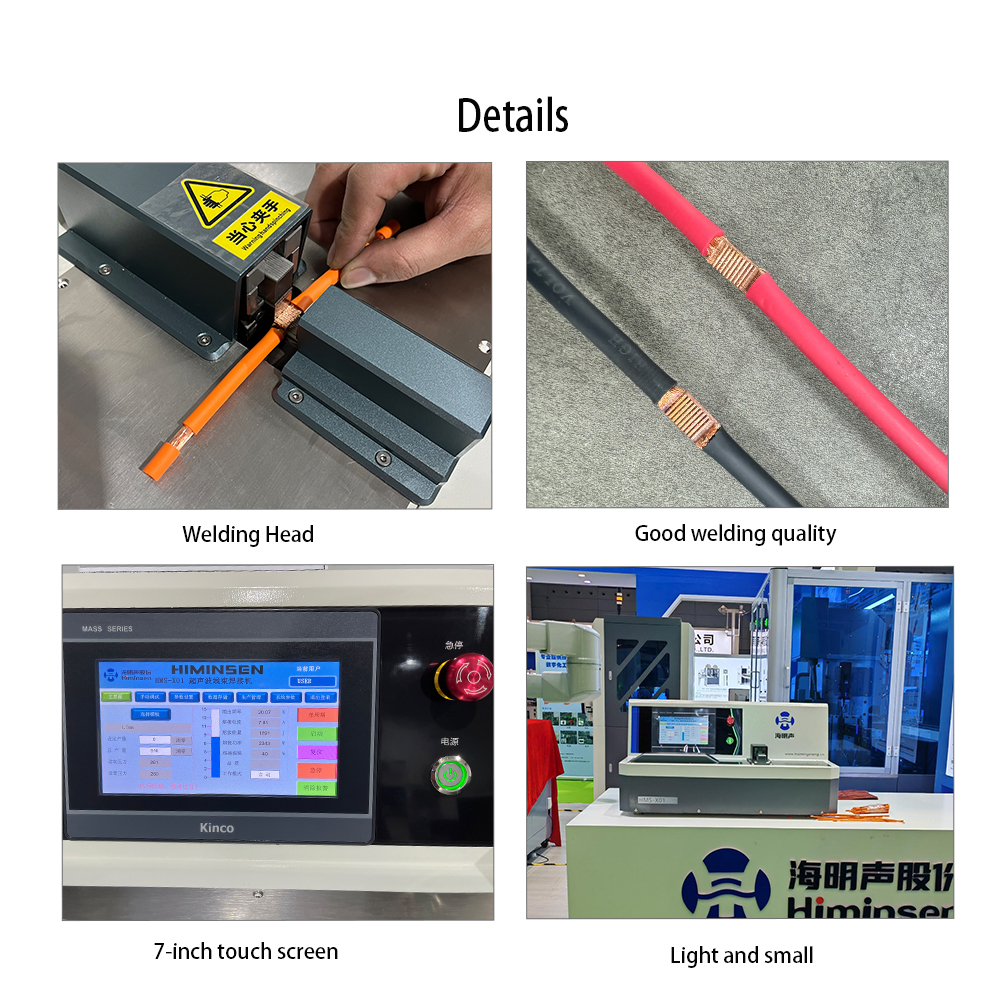

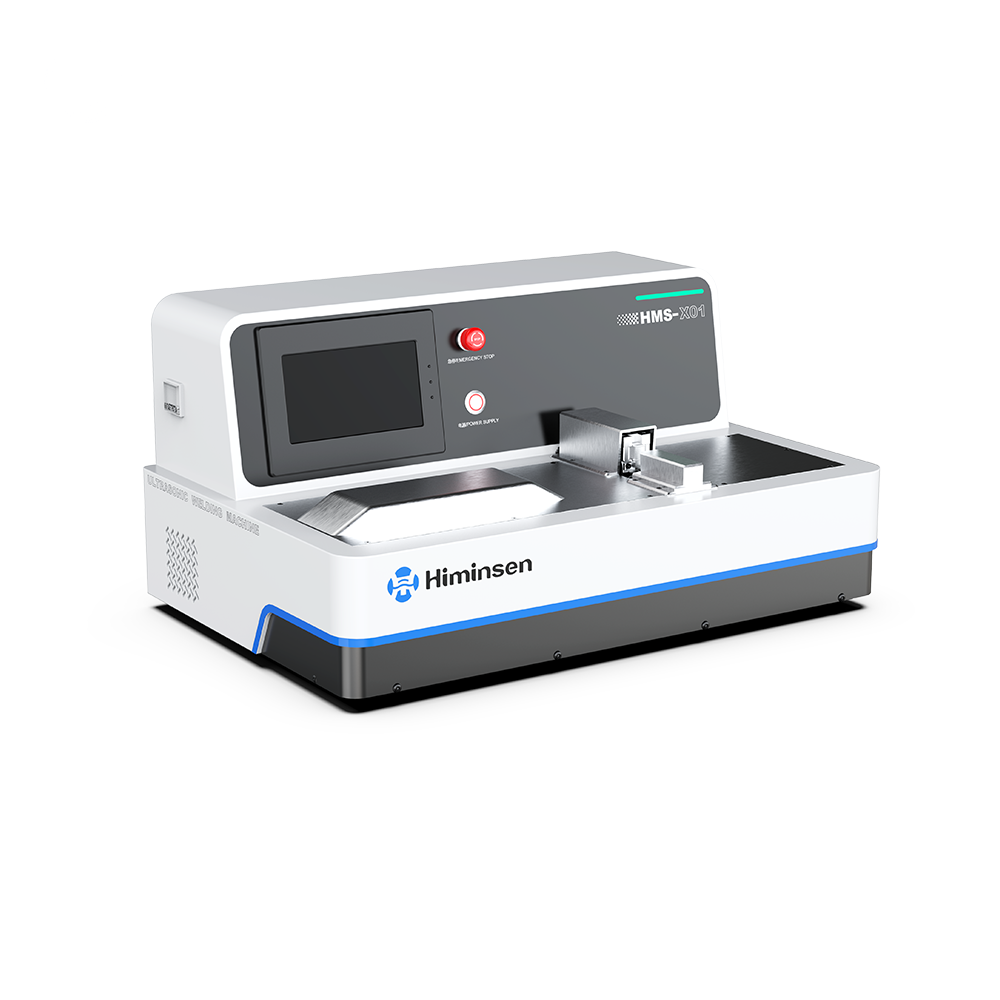

The HMS-X01 ultrasonic wire harness welding machine adopts cutting-edge ultrasonic welding technology, and all important components are developed and produced in-house by Himinsen. Its power system consists of crimp cylinders and stepper motors. Different welding needs are achieved by utilizing a crimped cylinder to adjust the proportional valve.

HMS‑D01 Ultrasonic Terminal Welding Machine, 6200W power, 20KHz operating frequency, suitable for welding 6‑70mm² copper wire and 6‑85mm² aluminium wire, with a capacity of 120‑150pcs/h. Vertical CNC model with 4‑cylinder double‑solenoid‑valve control system, 18.5‑inch industrial touch screen plus industrial controller, supporting storage of 100,000 sets of welding data. Equipped with Germany‑imported core components for welding copper/tinned/aluminum wires to copper/aluminum terminals. Widely used in automotive wire harness, energy‑storage battery, new‑energy electronic control and industrial‑control equipment wire harness processing.

HMS‑D01GW Ultrasonic Terminal Welding Machine (Crimp‑Wing Terminal Welding) is a vertical‑structure CNC welding machine. Its height adjustment is ergonomically designed. Equipped with a control system featuring four‑cylinder and double‑solenoid‑valve configuration, it delivers stable operation. Operated via an industrial touch‑screen display, it presents data in an intuitive way.The transducers, generators, amplitude transformers and welding heads are independently developed by Himinsen, which greatly enhance the overall machine performance.It is suitable for welding copper wires / tinned wires / aluminum wires to copper or aluminum terminals, and supports tail‑fin crimping function. It is widely applied in multiple industries including automotive, instrumentation, communication equipment and household appliances.

HMS‑D01G Ultrasonic Terminal Welding Machine, 9000W power, 20KHz operating frequency, suitable for welding 6‑95mm² copper wire and 6‑95mm² aluminium wire, with a capacity of 120‑150pcs/h. Vertical CNC model with 4‑cylinder double‑solenoid‑valve control system, 18.5‑inch industrial touch screen plus industrial controller, supporting storage of 100,000 sets of welding data. Self‑developed core components enable welding of copper/tinned/aluminum wires to copper/aluminum terminals. Widely used in automotive wire harness, energy‑storage battery, new‑energy electronic control and industrial‑control equipment wire harness processing.

HMS‑D01T Ultrasonic Terminal Welding Machine is a vertical CNC model with 11000W power, 20KHz working frequency and production efficiency of 120‑150pcs/h. Welding range: welding of 16‑120mm² copper cables to copper terminals, and 16‑150mm² aluminum cables to copper terminals. Weldable materials: copper wires compatible with silver‑plated copper, nickel‑plated copper and bare‑copper terminals; aluminum wires compatible with silver‑plated copper, silver‑plated aluminum and bare‑copper terminals. It supports 90° or 180° welding between cables and terminals.It adopts a four‑cylinder double‑solenoid‑valve control system with ergonomic height adjustment. Equipped with Himinssen self‑developed transducer, generator, booster and welding head. It supports MES connection, storage of 100,000 sets of welding data, user permission management and multilingual switching to prevent false welds, cold welds and mis‑welding.

HMS‑D02 Ultrasonic Terminal Welding Machine, 6200W, 20KHz, 120‑150pcs/h. Welding range: 16‑70 mm² copper wire; 16‑85 mm² aluminium wire, equipped with German Herrmann ultrasonic components. Four‑cylinder double‑solenoid‑valve control system with ergonomic height adjustment. Supports MES connection, 100,000‑set welding‑data storage, multi‑level user rights management and multilingual switching to prevent false weld, cold weld and mis‑welding.

HMS‑D02G Ultrasonic Terminal Welding Machine, 13000W, 20KHz, 120‑150pcs/h. Welding range: 16‑120 mm² copper wire; 16‑150 mm² aluminium wire, equipped with Himinsen self‑developed ultrasonic unit. Four‑cylinder double‑solenoid‑valve control system with ergonomic height adjustment. Supports MES connection, 100,000‑set welding‑data storage, multi‑level user rights management and multilingual switching to prevent false weld, cold weld and mis‑welding.
