Ultrasonic Terminal Welding Machine

HMS-D02GN Ultrasonic Torsional Welding Machine

HMS-D02GN Ultrasonic Torsional Welding Machine

Service hotline

+8618938694287

Add to the wish list

Product consultation

Ultrasonic Welding Machine Ultrasonic Terminal Welding Machine

Key Attributes

HS Code	8515809090	Power	13000W*2
Voltage	AC 380V 50Hz	Equipment Weight	944kg
Equipment Size	206016501300mm	Production Efficiency	120-150pcs/h
Wire Harness Welding Range	Copper wire 16mm² -120mm²;Aluminum wire 16mm² -150mm²	Operating Frequency	20KHz
Air Pressure	>0.5 MPa

Application Scenarios

Ideal for new energy vehicle wiring harness, automotive cables, power connection cables and other metal wire splicing.New energy vehicle complete wiring harnesses, power battery PACK harnesses, energy storage inverter connecting cables, photovoltaic module bus cables, EV charging gun wires, construction machinery wiring, rail transit high-voltage harnesses, medical precision equipment conductors and other wire harness production lines.

Ultrasonic Welding Machine Ultrasonic Terminal Welding Machine

Product introduction

HMS-D02N & HMS-D02GN ultrasonic wire welder for copper & aluminum harness mass production with yield above 99.9%. Two models cover wide wire cross-section range. Equipped with intelligent control system, MES connection, recipe storage and welding error prevention, perfectly meeting high-standard automatic production for automotive & new energy harness.

Advanced ultrasonic welding technology

Easy operation

Compatible with MES systems

Password protection and parameter storage

Supports storage of 100,000 sets of welding data

Prevents misaligned welds, missing welds and incomplete fusion

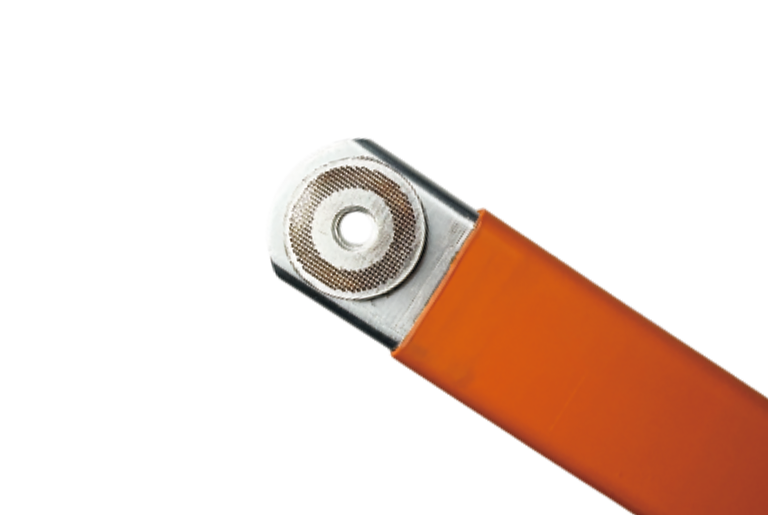

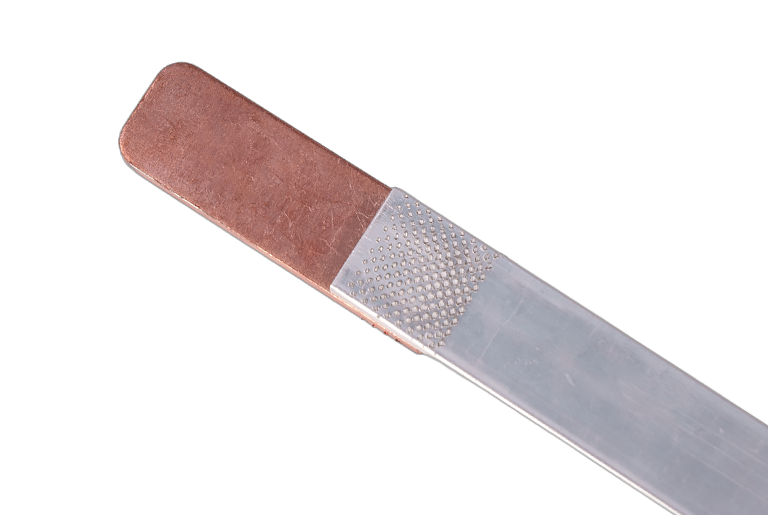

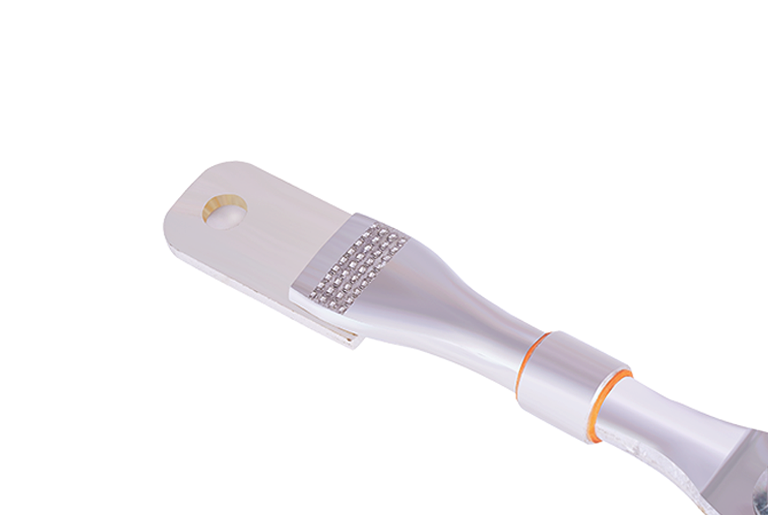

Sample Display

Comparison of similar product features

HMS-D02GN Ultrasonic Torsional Welding Machine

Wire Harness Welding Range	Copper wire 16mm² -120mm²;Aluminum wire 16mm² -150mm²
Operating Frequency	20KHz
Voltage	AC 380V 50Hz
Equipment Weight	944kg
Equipment Size	206016501300mm
Power	13000W*2

HMS-D02T Ultrasonic Terminal Welding Machine

Wire Harness Welding Range	Copper wire 16-150mm²;Aluminum wire 16-185mm²
Operating Frequency	20KHz
Voltage	AC 380V 50Hz
Equipment Weight	944kg
Equipment Size	206016501300mm
Power	15000W

HMS-D02G Ultrasonic Terminal Welding Machine

Wire Harness Welding Range	Copper wire 16mm² -120mm²;Aluminum wire 16mm² -150mm²
Operating Frequency	20KHz
Voltage	AC 380V 50Hz
Equipment Weight	944kg
Equipment Size	206016501300mm
Power	13000W

Product Name

Wire Harness Welding Range

Operating Frequency

Voltage

Equipment Weight

Equipment Size

Power

HMS-D02GN Ultrasonic Torsional Welding Machine	HMS-D02T Ultrasonic Terminal Welding Machine	HMS-D02G Ultrasonic Terminal Welding Machine
Copper wire 16mm² -120mm²;Aluminum wire 16mm² -150mm²	Copper wire 16-150mm²;Aluminum wire 16-185mm²	Copper wire 16mm² -120mm²;Aluminum wire 16mm² -150mm²
20KHz	20KHz	20KHz
AC 380V 50Hz	AC 380V 50Hz	AC 380V 50Hz
944kg	944kg	944kg
206016501300mm	206016501300mm	206016501300mm
13000W*2	15000W	13000W
